Product Introduction

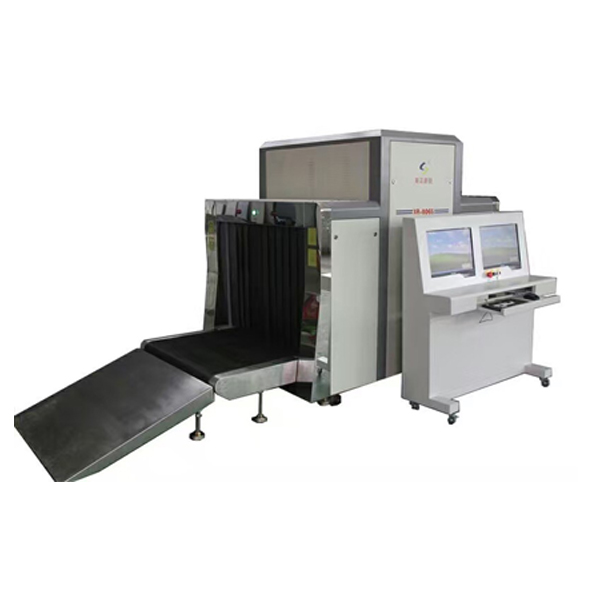

Juzheng designed XR-10080 to thwart the cleverest attempts at hiding weapons, drugs, stolen goods and other contraband. XR-10080 X-ray Security Inspection System is ideal for screening everything from over size packages to oddly shaped items and palletized loads. Excellent systems for the airport, train station, bus station as well as security-sensitive corporate environments.
Specification
Specification
X Ray Generator
Working Environment
| Passageway size | 1000mm (width) × 800mm (height) |
| Conveyor speed | 0.22 m/s |
| Rated conveyor load | 200 kg |
| X-ray volume for single inspection | < 1.5μGNy |
| Resolution | 0.0787mm-diameter metal wire |
| X-ray penetration | 43mm-thick steel plates |
| Effect on film | safe for ISO1600 film |
| X-ray volume | ≤1.0μGy/h |
| Leakage volume | < 0.05μGy/h |
| X-ray direction | from the top |
| Tube current | 0.4~1.25mA (adjustable) |
| Tube voltage | 100~160 kV (adjustable) |
| Beam divergence angle | 90° |
| Cooling/operation cycle | sealed oil cooling/100％ |
| Temperature/humidity | 0℃~45℃/20%~95% (non-condensable gas) |
| Storage temperature/humidity | -20℃~60℃/20%~95% (non-condensable gas) |
| Voltage | 220VAC(±10%) 50±3Hz |
| Power loss | 1.0KW (max) |
| Noise | < 55dB |

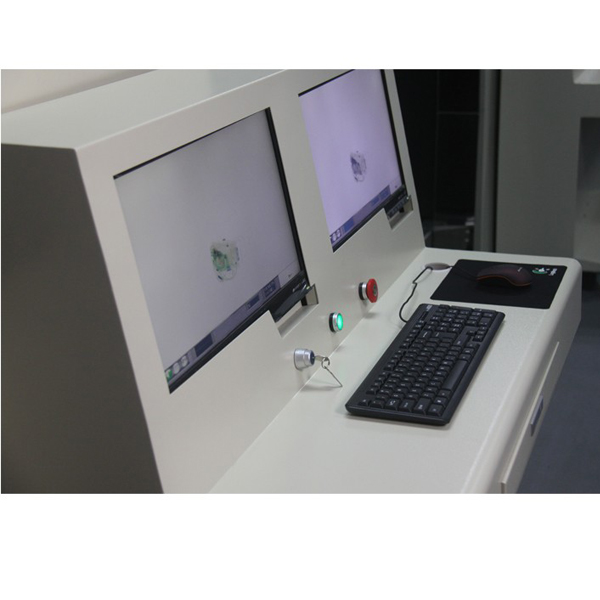

| Operator station | 3-strand cable between operator station and host |
Application
Main Components

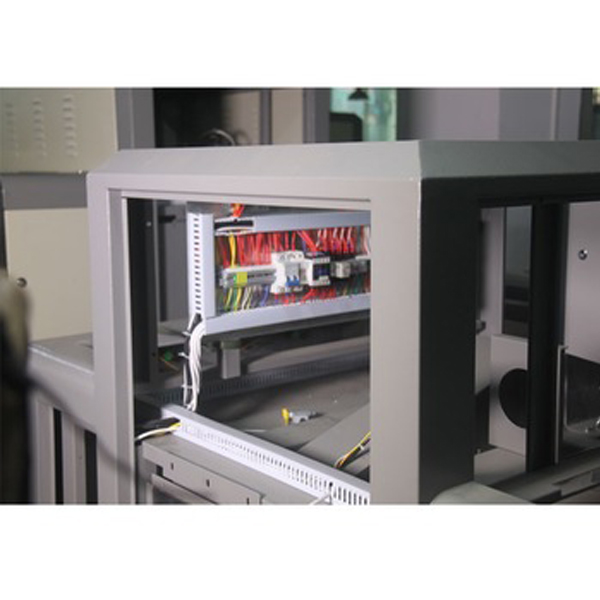

Manufacturing
