Product Introduction

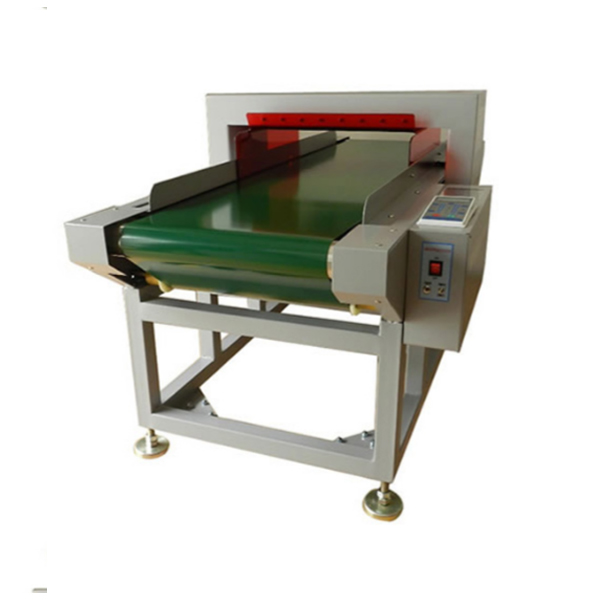

XR-8500 Garment Needle Detector Machine is good for clothing,toys,textiles,knitwear. It is fit to medium-sized enterprises which need broken needle control and detection.
XR-8500 Garment Needle Detector Machine is relatively strict environmental requirements during working, but can also detect very stable mixed, broken needle,wire and other ferromagnetic metals in the textile products, avoid consumers and businesses direct or indirect losses.The product must be used in the quality control of textile enterprises. It is also a symbol of corporate quality standards, better for business to get more orders.
Specification
| MODEL | XR -8500 | ||||
| Detection approach | electromagnetic induction, digital circuit processing | ||||
| Sensitivity | ≥ Fe Φ 0.8 | ≥ Fe Φ 1.0 | ≥ Fe Φ 1.2 | ≥ Fe Φ 1.5 | ≥ Fe Φ 2.0 |
| Detection height | 120 | 150 | 200 | 250 | 300 |
| Detection width | 500mm (customizable) | ||||
| Detection adjustment | 1-120 grade | ||||
| Alerting method | audible alert, shutdown, go backwards, and then restart | ||||
| Power supply | AC220V 50-60Hz | ||||
| Pated output | 120W | ||||
| Machine Size | L1850mm × W950mm × H1000mm | ||||
| Net weight | 280KG | ||||
JZXR XR-8500 Garment Needle Detector Machine Video

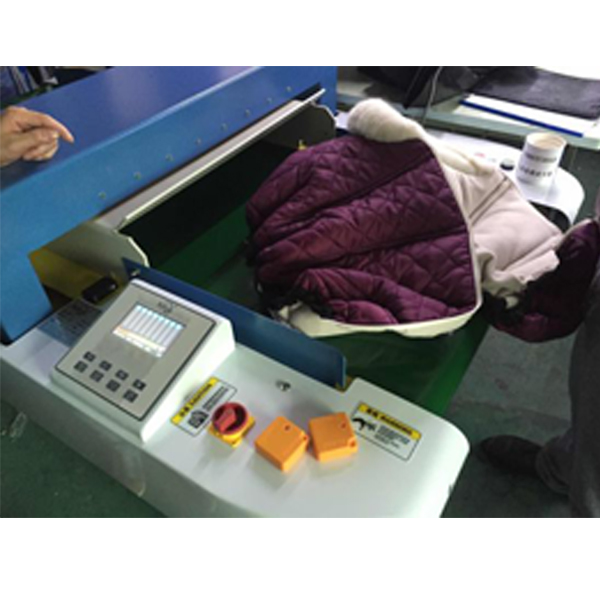

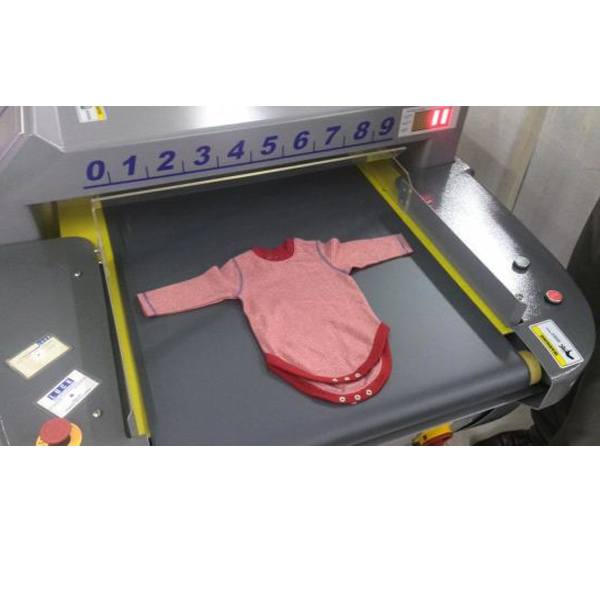

Application

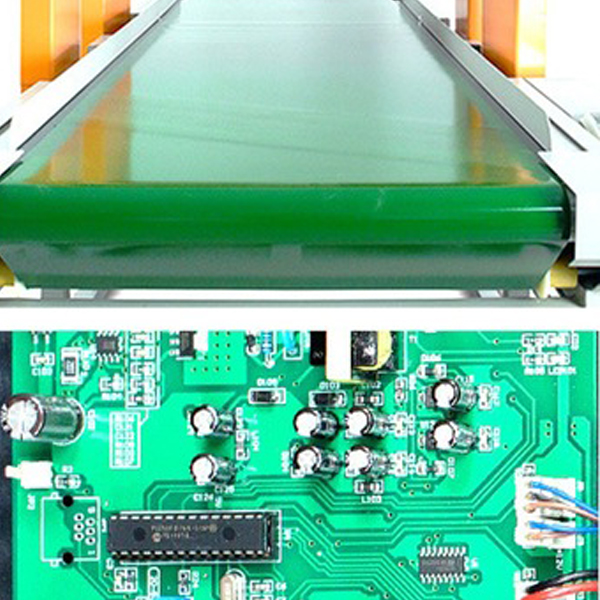

Main Components
Manufacturing
Our Customers
Certifications
