Product Introduction

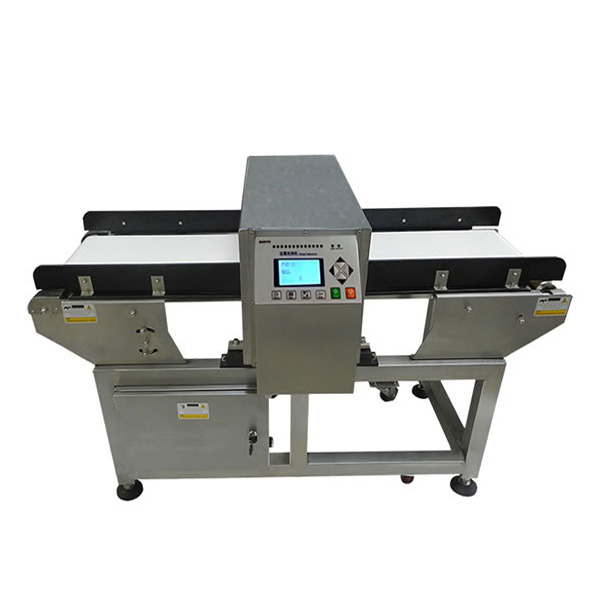

The Juzheng XR-980 Food Testing Equipment Machine is to apply metal detecting after the garments are completely sewn and before garments are packed to check whether there is any metal contamination (needle, broken needle, etc.) in the garments.
It is suitable for detecting the metal materials from the garments, food and chemistry in field requirements.
Specification
| Model | XR-980 | ||||||||
| Machine type | Standard | Nonstandard (special specification) | |||||||
| Tunnel width (mm) | 400 | 500- (customized) | |||||||
| Tunnel height (mm) | 100 | 120 | 150 | 200 | 250 | 300 | 350 | 400 | |
| Standard detection sensitivity | diameter of iron ball (Φ mm) | ≥0.6 | ≥ 0.8 | ≥ 1.0 | ≥ 1.2 | ≥ 1.5 | ≥ 2.0 | ≥ 2.5 | ≥ 3.0 |
| diameter of balls made of non-ferrous metal like copper and aluminum (Φ mm) | ≥1.2 | ≥ 1.2 | ≥ 1.5 | ≥ 1.5 | ≥ 2.5 | ≥ 3.0 | ≥ 4.0 | ≥ 4.5 | |
| 304 stainless steel ball (Φ mm) | ≥1.2 | ≥ 1.5 | ≥ 2.0 | ≥ 2.0 | ≥ 2.5 | ≥ 3.0 | ≥ 4.0 | ≥ 4.5 | |
| Alerting manner | stop automatically once a metal foreign body is detected; the buzzer alarms or pick the metal objects out | ||||||||
| Machine material | machine frame is made from 304 stainless steel; in line with HACCP, GMP, FDA, and CAS standards | ||||||||
| Machine dimension (mm) | 1330 ×750 ×1100 (L×W×H) | ||||||||
| Machine weight | about 180KG | ||||||||
| Remarks: the parameters listed above are tested without taking into account the environmental interference. The actual performance may be subject to working environment and components of the products to be tested | |||||||||
