    • MD-600A Walk Through Metal Detector

    Introduce：
    Weapon Detection System, Airport Full Body Scanner, Whole Body Screening System, Puffer Machine, Trace Portal Equipment

    Online Message

    Product Introduction

    Walk Through Metal Detectors, Associated Security Searches, they Detect Metallic Objects on People Passing through the Detector.

    1. The security detection system is designed with simple and elegant panel, 4 easy-operated buttons, and English/Chinese selection

    2. Patented structural parts; windproof, damp-proof, and dust-proof design
    3. With excellent performance, high sensitivity, and great stability, it is able to detect small metal sheet with a weight of 6g
    4. The walk-through metal detector features multiple probes, detection regions, and launch and receiving units. Interactive detection technology is employed
    5. Operators can set the sensitivity separately for each detection region to eliminate the interference from key, belt buckle, bra, phone, among other metal goods
    6. The frame is made from thickened high-strength high-pressure laminate (HPL). The one-shot aluminum column having been given antioxidant treatment features high hardness and no deformation
    7. The weapon detection system is easily-assembled, solidly-structured, and highly stable with the metal chassis and patented countersunk head bolt
    8. The ultra-bright double-row alarming indicators show clearly where the prohibited items are hidden
    9. Users can set the volume of alert sound at will
    10. The full body scanner can be connected to network via PC or software, making it ideal for large event, race, and users who need to manipulate several equipment at the same time
    11. It can be equipped with auxiliary devices, like tripod turnstile, wing gate, access control, attendance machine, etc.
    12. With a system upgrading port, users can upgrade it for a secondary development. We offer free upgrade service for lifetime
    13. The patented 3D infrared system helps prevent interference from strong light and day light
    14. A unique infrared system start and stop technology makes the body screening machine a reliable choice for users' need
    15. Stability of the system is well guaranteed by all-encased high heels and double-fulcrum design, which is unaffected by uneven ground
    16. Both sides of the door are equipped with power interface

    17. Password management technology is available


    MD-600A Walk Through Metal Detector Drawing

    Security Checking Machine Videos

    Specification

    Detector dimension 2240x670x860mm
    Passageway size 2000x700mm
    Main chassis size 755x435x255mm
    Panel size 2290mmx715mmx200mm
    Main chassis/panel net weight 67kg
    Main chassis/panel gross weight 75kg
    Voltage 210V~240V50/60Hz
    Power 25W
    Frequency range 1 -50 bands
    Environment temperature -20 ℃~55 ℃
    Space required 100cm* 200cm (W*L)
    Metal detection accuracy ≥ 6g

    Following are all colors of walk through metal detector can be choosed.

    walk through metal detector colors

    Application

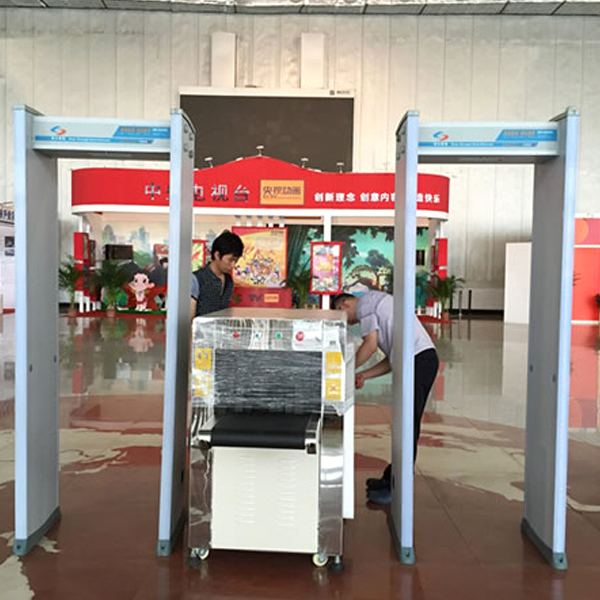

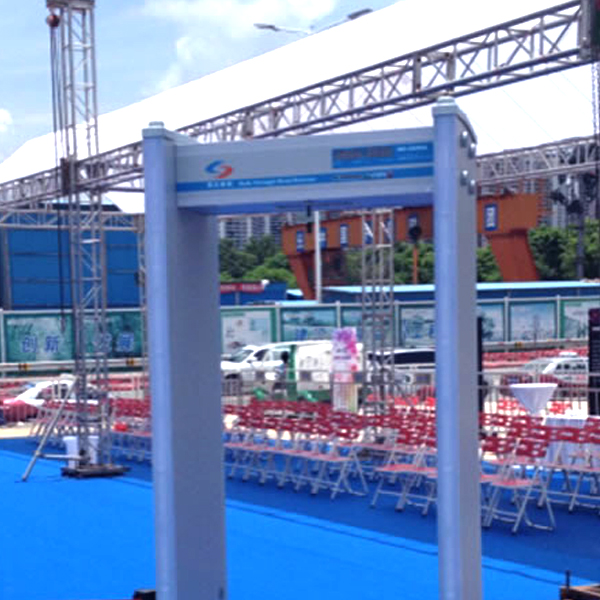

    walk through metal detector application

    Main Components

    Manufacturing

    Our Customers

    Certifications
