Product Introduction

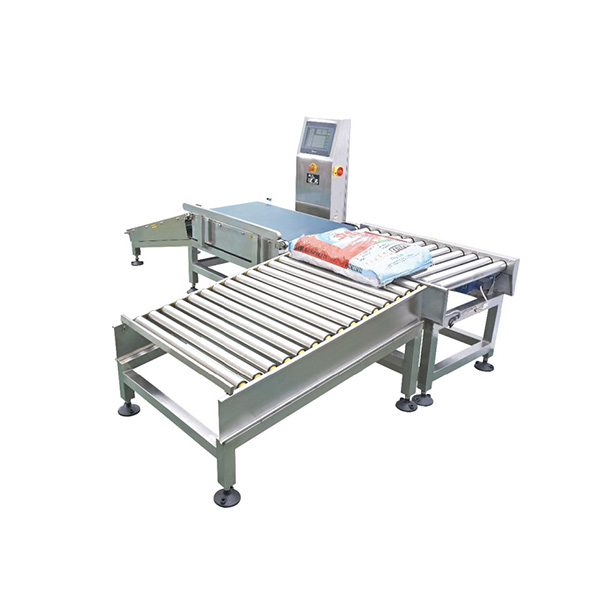

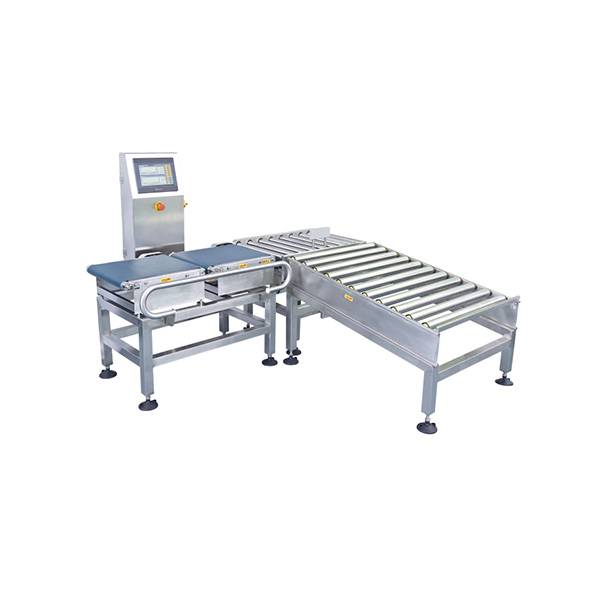

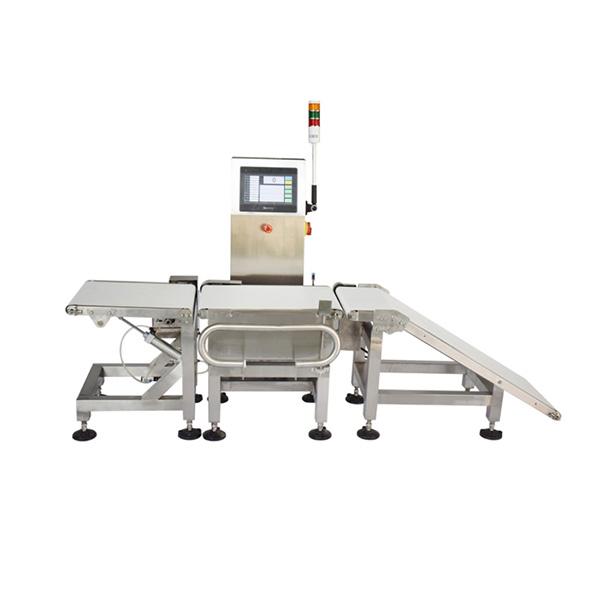

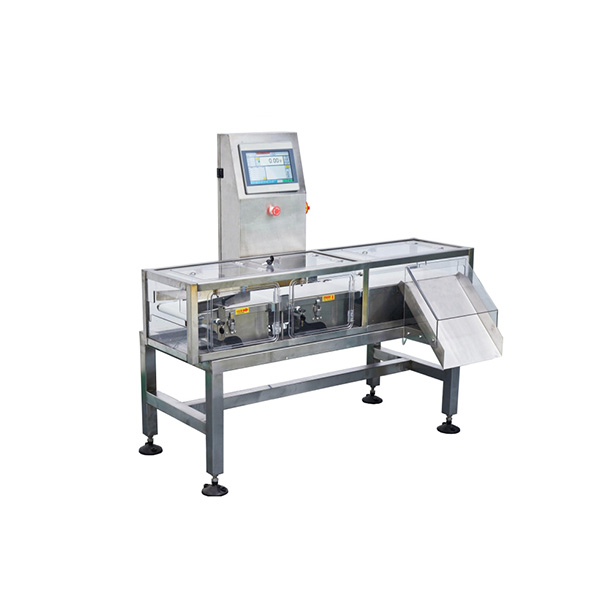

Microcomputer Controlled Conveyor Belt Checkweigher
1. Designed with 10-inch color touch screen, like a smartphone, easy to operate.
2. The XR-CZ500g checkweigher can achieve a quick belt change, besides, it adopts a buckle design, making it easy to clean the belt.3. Available in 10 shortcut menus, being able to achieve product changing without stopping the machine.
4. Core components of this checkweigher are all imported, ensuring stable operation of the equipment.
5. We have our own independent processing plant, enabling us to produce low-cost, low-price products as compared with the other products with the same grade.
6. We have domestic leading sorting and rejector system, which prevents material spilling in the products sorting and ensures integrity of the tested objects.
Specification
Model: XR-CZ500g
Weighing range: 8g-500g
Weighing zone: Length: 450mm; width: 300mm (customizable）
Weighing precision: ±0.5g
Display resolution: 0.1g
Sorting speed: 160 pieces/ min
Height of conveyor belt to the ground: 700mm±50mm（Adjustable）
Display: 10-inch large touch screen
Control power supply: AC 220 V (fluctuation+10% 、-15%,50/60Htz)
Working temperature: 0°C - 40°C
Humidity: 90% relative humidity（no condensed water）
Material, surface treatment: Stainless steel 304, polished surface
Devices used: Printer, ink-jet printer, labelling machine, metal detector etc
Weighing sensor: Germany HBM sensor
Engine: Germany JSCC engine
Optional conveyor belt: Food-grade belt, PU belt, PVC belt
Weighing range: 8g-500g
Weighing zone: Length: 450mm; width: 300mm (customizable）
Weighing precision: ±0.5g
Display resolution: 0.1g
Sorting speed: 160 pieces/ min
Height of conveyor belt to the ground: 700mm±50mm（Adjustable）
Display: 10-inch large touch screen
Control power supply: AC 220 V (fluctuation+10% 、-15%,50/60Htz)
Working temperature: 0°C - 40°C
Humidity: 90% relative humidity（no condensed water）
Material, surface treatment: Stainless steel 304, polished surface
Devices used: Printer, ink-jet printer, labelling machine, metal detector etc
Weighing sensor: Germany HBM sensor
Engine: Germany JSCC engine
Optional conveyor belt: Food-grade belt, PU belt, PVC belt
Other standard equipment: Windshield（Colorless and transparent）, calibration weights

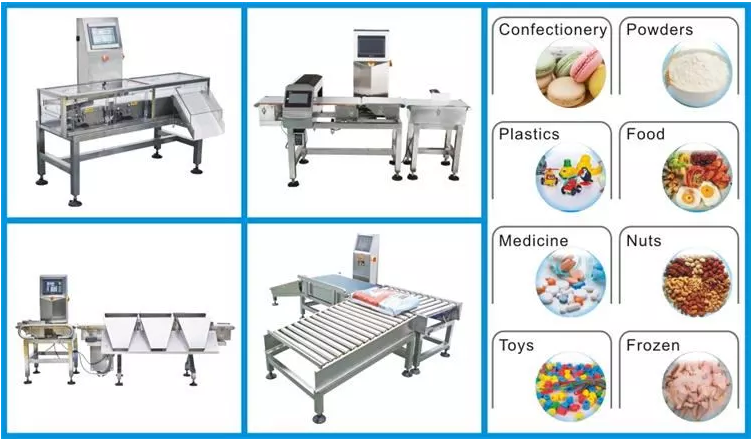

More Automatic Checkweighers
Application
This model checkweigher was special designed to check the single bag weight is conformed to the preset target weight or not. If over or less weight will be rejected out by the rejection device, qualified bags will be passed to next equipment.
Main Components
Manufacturing
Our Customers
Certifications
