    • GC-101H Hand Held Metal Detector

    Introduce：
    Handheld Body Scanner, Weapon Screening Device, Airport Security System, Body Scanning Tool for Airport, Train Station Security Check Device

    Online Message

    Product Introduction

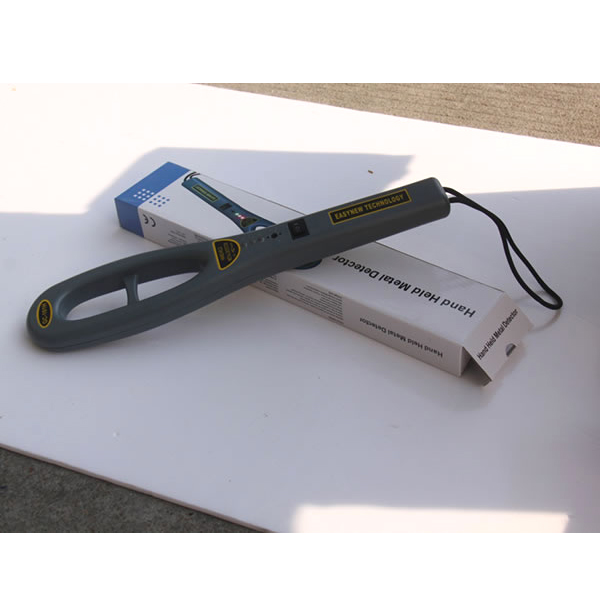

    GC-101H series high-sensitivity hand held metal detector is a high-performance metal detection device with portable and easy to carry size especially designed for public security system. The ultra-high sensitivity and unparalleled streamline design has distinguished GC-101H body scanning device from other security detection products. The housing of GC-101H is casted from ABS plastic, which is different from traditional detecting devices. The special detection design, accompanied with advanced audio and vibration alert devices have worked together for higher detection sensitivity. Meanwhile, GC-101H body scanner is an energy-saving model and can work continuously for long time. It integrates CMOS circuit and electronic buzzer for the accurate detection of ferromagnetic and metal.

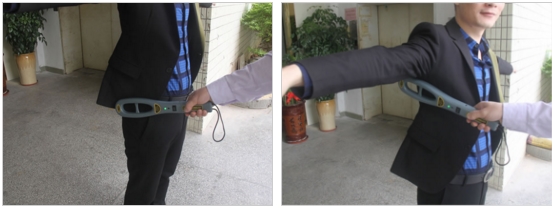

    GC-101H Hand Held Metal Detector Testing


    Main Features
    1. Streamline design, aesthetic appearance, and extremely high sensitivity
    2. Light weight, large detection area, high working efficiency
    3. 2 alert modes optional: LED light alert or vibration alert
    4. The detector is highly durable and won't hurt after a free-fall from a height of 1m
    5. Voltage and charging indicators
    6. Battery is available



    Hand Held Metal Detector Videos

    Specification

    Sensitivity of GC-101H metal detector is subject to change as the surroundings or the metal's volume, size and density varies. Factory standards are listed as follows:

    Pin: 30-60 mm
    Coin: 75-100 mm
    6-cun blade: 160-10mm
    20mm-dia steel ball: 180-195mm

    1. Alerting Notification
    Yellow LED always on: target detected
    Green LED flashes: power on
    Red LED flashes: low voltage
    2. Alerting Indicator
    Audio mode: buzzer and red LED
    Vibration mode: vibration and red LED
    3. Battery
    9V alkaline or lithium battery
    Battery life: 30-40 hours (lithium battery); 28 hours (alkaline battery)
    4. Temperature: -15~45℃
    5. Frequency: 25Hz
    6. Time for reset: 0.5s
    7. Dimension

    Weight: 225g (without battery);
    Width: 77mm;
    Height: 26mm;
    Length: 375mm

    Application

    GC-101H Hand Held Metal Detector Application
