    XR-50g-50mm High Precision Vibration Feeder Checkweigher Checkweigher

    Introduce：
    High Accuracy Chcekweigher with Rejector. Suitable for weighing small packs or single hardware parts, the accuracy can reach up to ±0.08g.

    Online Message

    Product Introduction

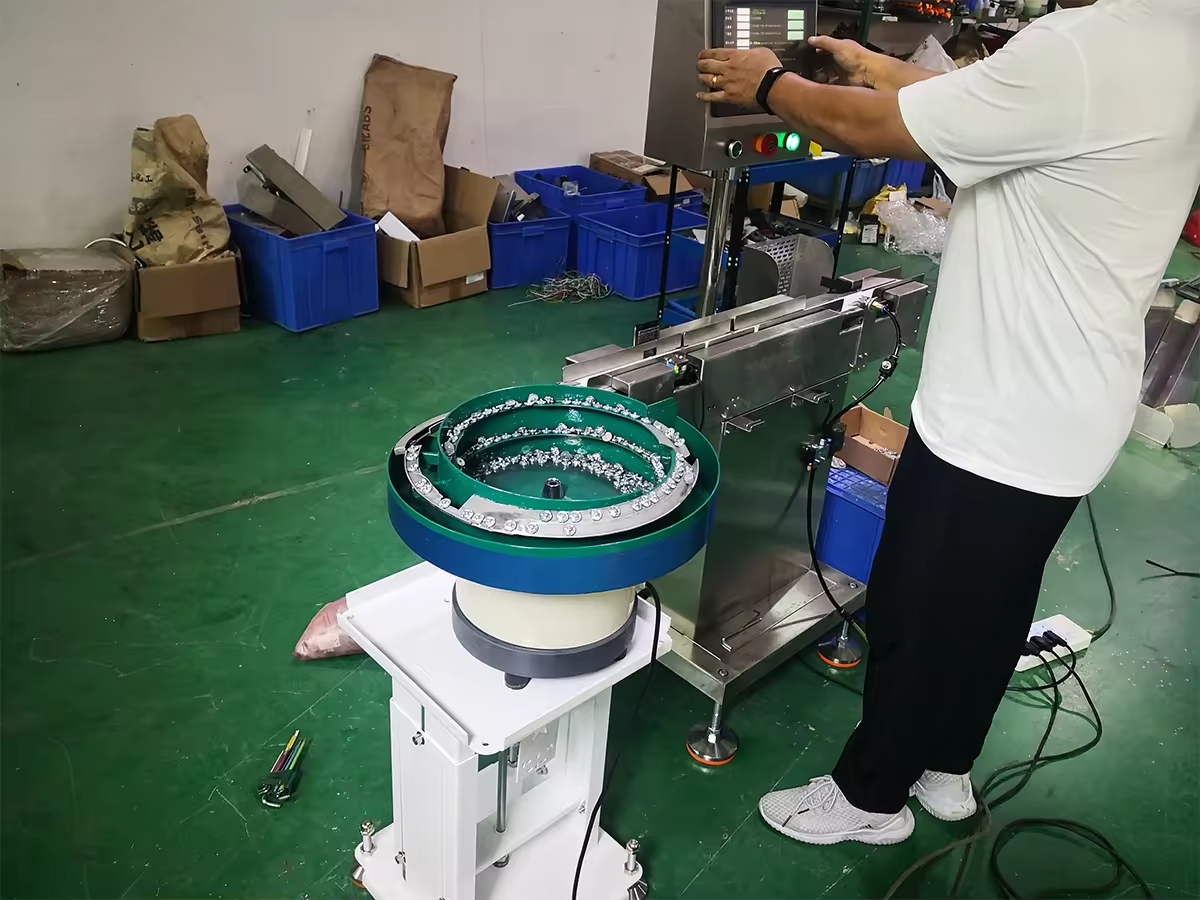

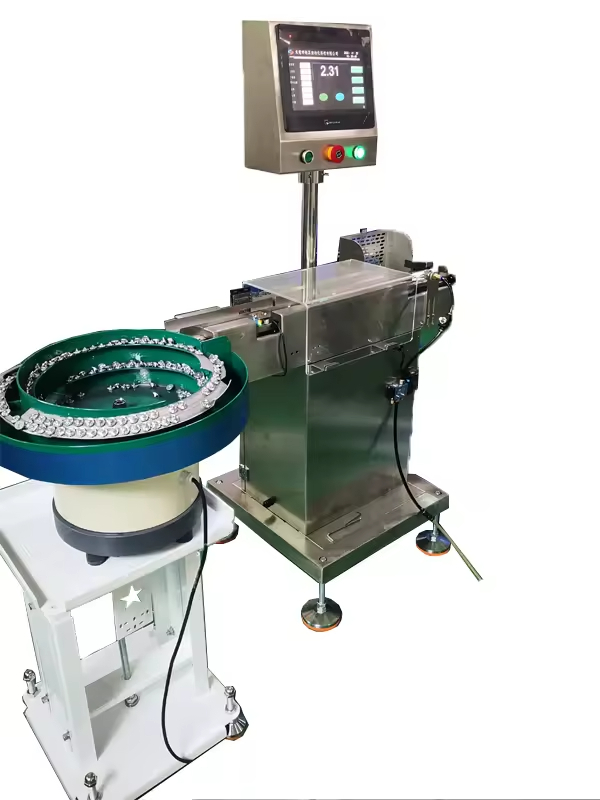

    The Juzheng Small Size Vibration Feeder Checkweigher is a compact and highly precise automatic weighing system designed for weighing small packs or single hardware parts, like screws, fasteners, or electronic parts. It integrates vibration feeding, inline weighing, and automatic rejection into one streamlined unit.

    Key Features

    •  High Precision Weighing: Accuracy up to ±0.08g

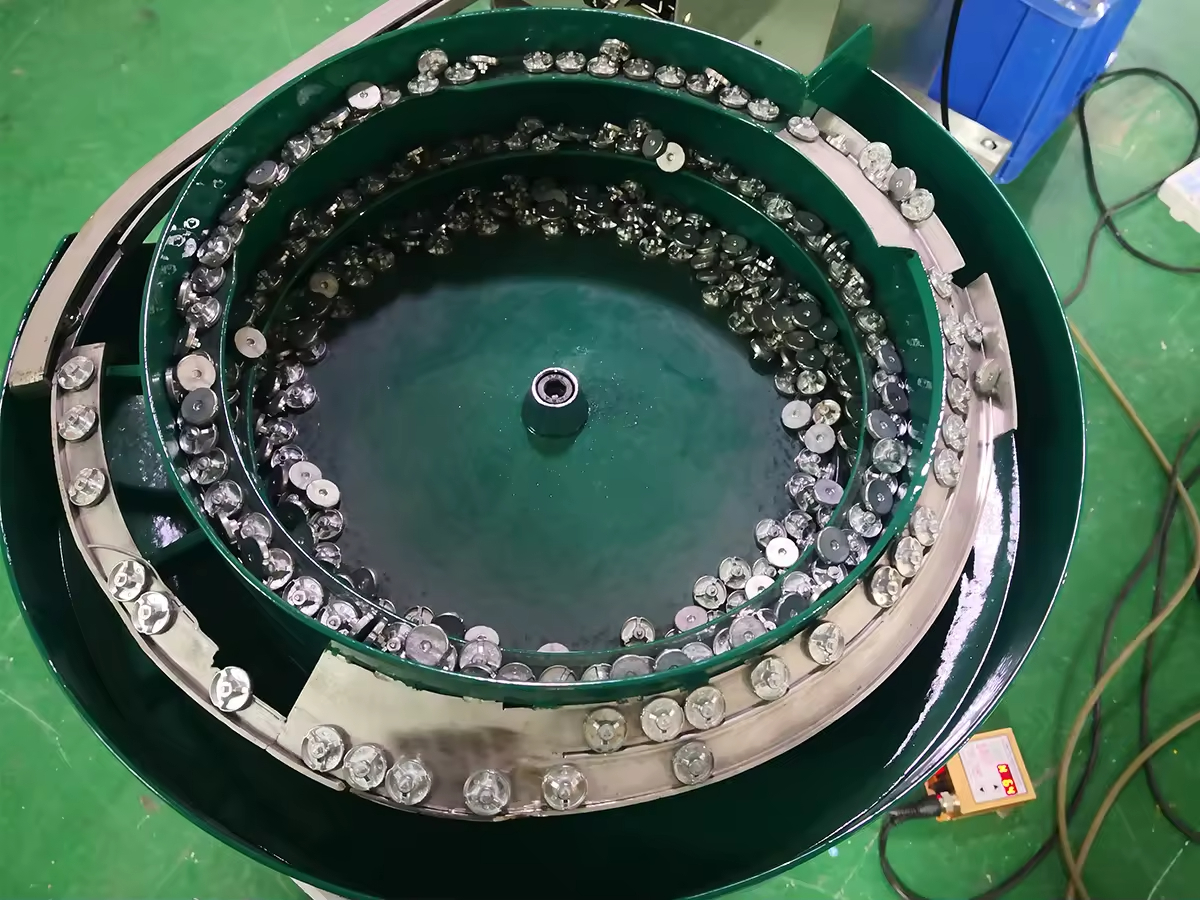

    •  Automatic Feed + Sort: Vibration feeder ensures smooth feeding of tiny metal items

    •  Reject Function: Automatically removes overweight/underweight products

    •  Compact Structure: Saves factory space, easy to integrate

    •  Ideal for: Metal screws, bolts, precision components, electronic parts

    Specification

    Mode XR-50G-50mm
    Belt Width(mm) 50
    Weighing range 1-50g
    Max speed(pcs/min) 120
    Display resolution(g) 0.01
    Operation Panel 7''/10'' Touchable Screen
    Conveyor height 800±50mm(can be customized)
    Language English / Chinese / Vietnamese / Spanish etc.
    Conveyor direction From left to right / From right to left(face to screen)
    Power AC220V ± 10%50HZ（60HZ)
    MS weighing scale module JZXR-80TL
    Load cell ZEMIC/HBM/Mettler Toledo
    Motor  German JSCC
    Inverter German JSCC
    Conveyor belt White PU Food-grade belt with FDA certificated
    Working Environment 0℃-40℃
    Material of construction SUS 304
    Rejection system Please refer to Automatic Rejection Systems
    Humidity 90% Relative humidity (without condensate)
    Notes:
    1.All the accuracy parameters above are the basis of the test samples on the conveyor belt. The actual  accuracy would be affected by the product's weight and conveyor speed.
    2.The checkweighing speed above will be affected by the product shape and size.
    3.The company's products will be continuously upgraded. If the above parameters are subject to change, we will not notify you in advance. Please refer to the latest parameters.
    4.Customized orders are acceptable for us.

    Application



    Technical Parameters

    • Weighing Range: 1g - 50g

    • Max Accuracy: ±0.08g

    • Max Speed: 120 pcs/min

    • Material: SUS 304

    • Belt Width: Customizable

    • Automatic Rejection Method: Air push /  / drop gate (Customized)


      Application Industries

    • Electronic manufacturing

    • Hardware parts production

    • Medical device components

    • Fasteners & screws factory

    • Precision OEM / ODM factories

      Why Choose Juzheng?

    • 10+ years expertise in inspection automation

    • Tailored solutions for small-size product sorting

    • CE/FDA/ISO certified designs

    • Fast shipping & responsive service
