    Introduce：
    It is suitable for the weight detection of large-weight and large-volume full-box and full-bag items.

    Online Message

    Product Introduction

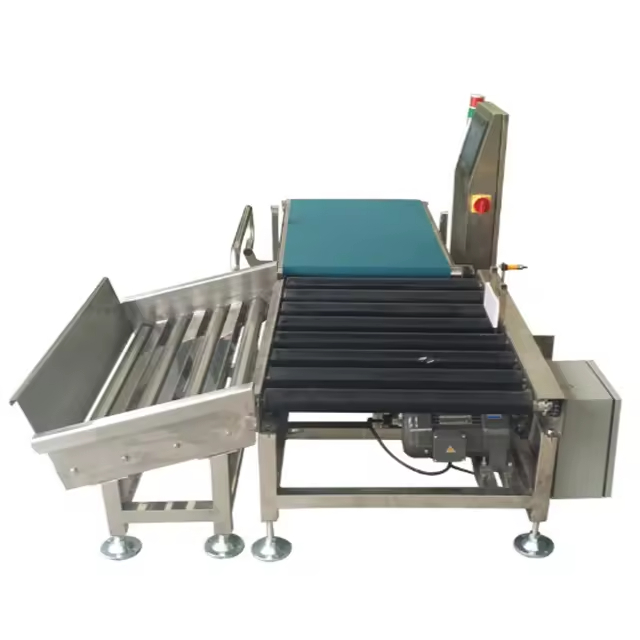

    The Juzheng 50kg High Load Checkweigher is an industrial-grade inline weighing solution designed for large and heavy packages. Engineered for maximum precision and durability, this automatic checkweigher is ideal for logistics, e-commerce, food processing, and manufacturing lines. It ensures real-time weight inspection, high-speed sorting, and seamless integration into your existing conveyor system.

    Specification

    Model                XR-50kg-500mm          XR-100kg-700mm
    Belt width(mm) 10g-50kg 10g-100kg
    Weighing range  ± 1g ± 2g
    Speed(pcs/min) 10-60 10-50
    Conveyor speed(m/min) 25-80 25-80
    Display resolution(g) 10'' Touchable Screen
    Conveyor height 700 ± 50mm
     Language English / Chinese /  Vietnamese / Spanish
    Conveyor direction  From left to right / From right to left (face to screen)
    Power AC220 ± 10%50HZ（60HZ)
    MS weighing scale module JZXR-80TL
    Load cell ZEMIC/HBM/Mettler Toledo
    Motor  German  JSCC
    Inverter Gerrman JSCC
    Conveyor belt White PU Food-grade belt with FDA certificated
    Working Environment  0℃~40℃
    Material of construction SUS 304
    Rejection system Please refer to Automatic Rejection Systems
    Humidity 90% Relative humidity (without condensate)
