Product Introduction
Boost your production efficiency with our high-precision Dynamic Checkweigher—designed for fast, accurate, and reliable weight inspection on high-speed production lines. This automatic checkweighing machine is ideal for industries such as food, pharmaceuticals, cosmetics, and logistics, ensuring product quality and compliance with strict weight standards.
Equipped with a real-time weighing system, customizable reject mechanisms. it integrates seamlessly into your packaging line. Our checkweighers support PLC/HMI control, multi-language interfaces, and data export, making them a smart solution for modern factories.
Available in various belt sizes and weighing ranges. OEM/ODM supported. CE & ISO certified.
Specification

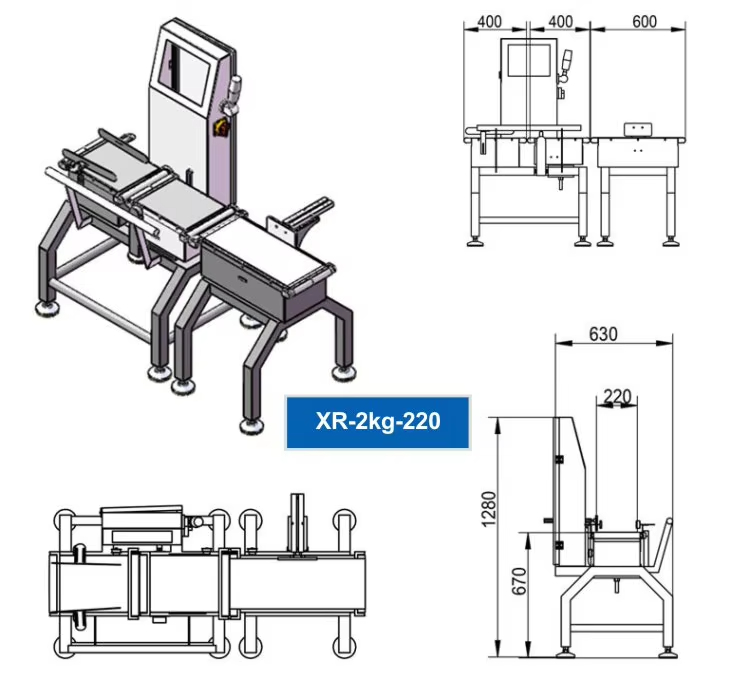

| Model | XR-1kg-220mm | XR-5kg-300mm | XR-10kg-400mm |
| Belt width(mm) | 220 | 300 | 400 |
| Weighing range | 1g-1kg | 10g-5kg | 10g-10kg |
| Max speed(pcs/min) | 120 | 100 | 100 |
| Display resolution(g) | 0.1g | ||
| Operation Panel | 10'' Touchable Screen | ||
| Conveyor height | 800 ± 50mm | ||
| Language | English / Chinese / Vietnamese/Spanish | ||
| Conveyor direction | From left to right / From right to left | ||
| Power | AC220V ± 10%50HZ（60HZ) | ||
| MS weighing scale module | JZXR-80TL | ||
| Load cell | ZEMIC/HBM/Mettler Toledo | ||
| Motor | German JSCC | ||
| Inverter | German JSCC | ||
| Conveyor belt | White PU Food-grade belt with FDA certificated | ||
| Working Environment | 0℃~40℃ | ||
| Mateiral of construction | SUS 304 | ||

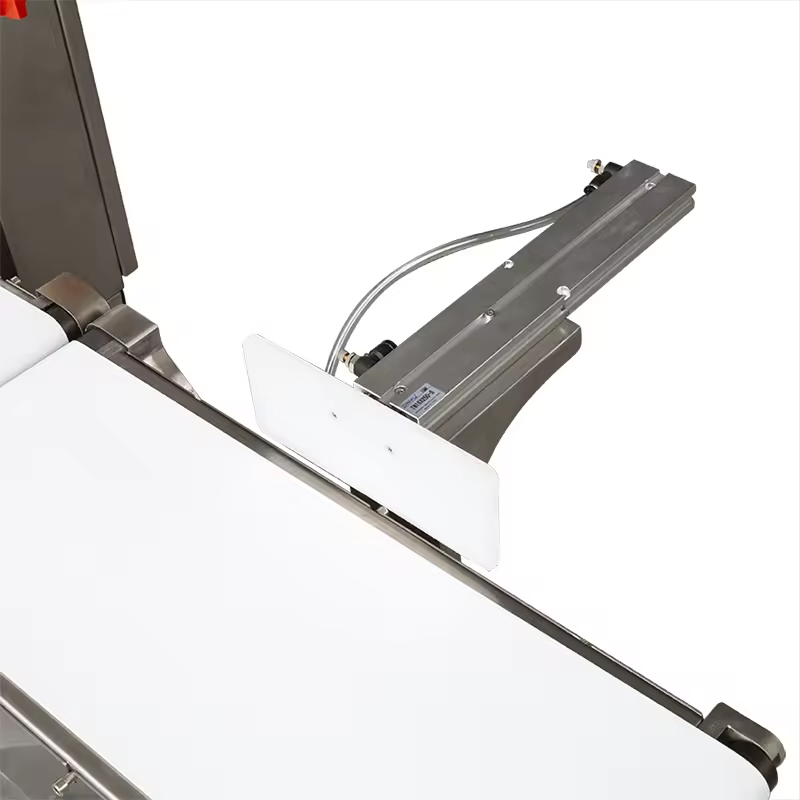

| Rejection system | Please refer to Automatic Rejection Systems | ||
| Humidity | 90% Relative humidity (without condensate) | ||
Application
Main Components
Manufacturing
Our Customers
Certifications
