    Portable X-ray Fluoroscopy System for Podiatry & Orthopedic Imaging | JZXR XR-100C-2 Portable X-Ray Fluoroscopy Instrument

    Introduce：
    Compact portable X-ray fluoroscopy system for podiatry and orthopedic use. High resolution, low leakage, OEM/ODM supported, in-stock for fast delivery.

    Online Message

    Product Introduction

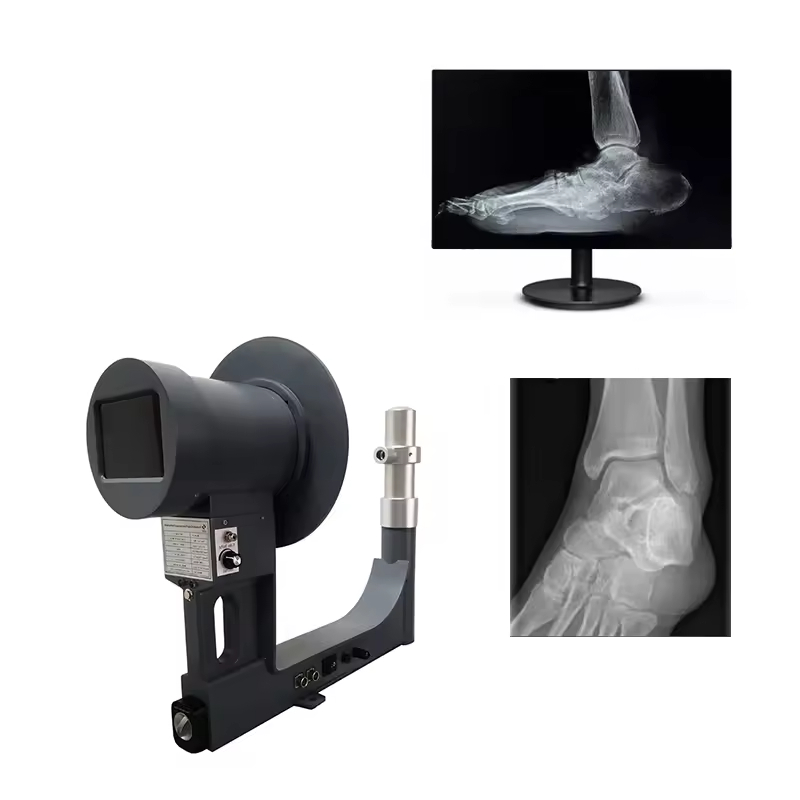

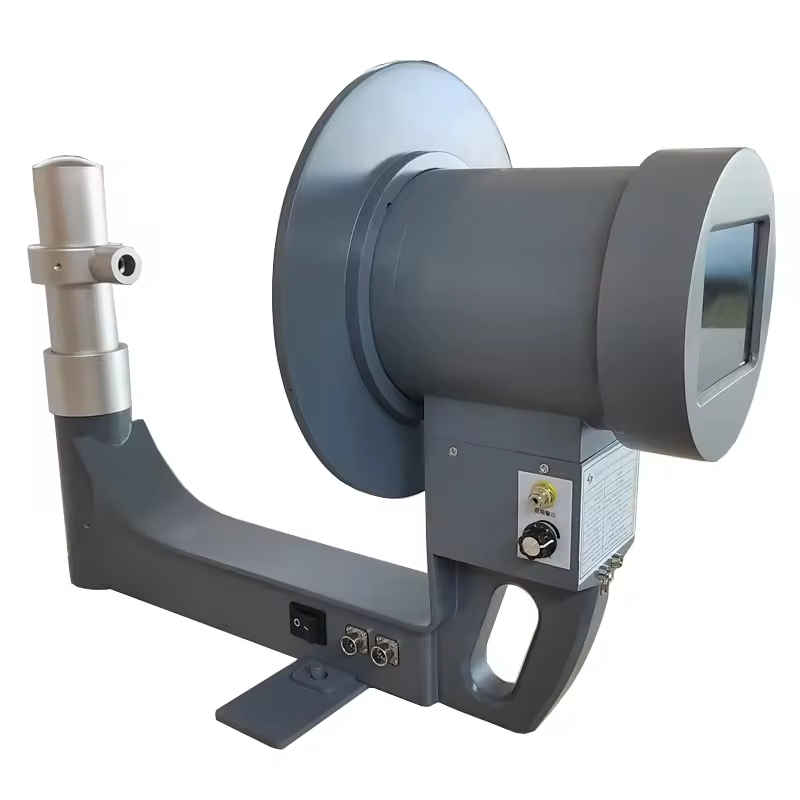

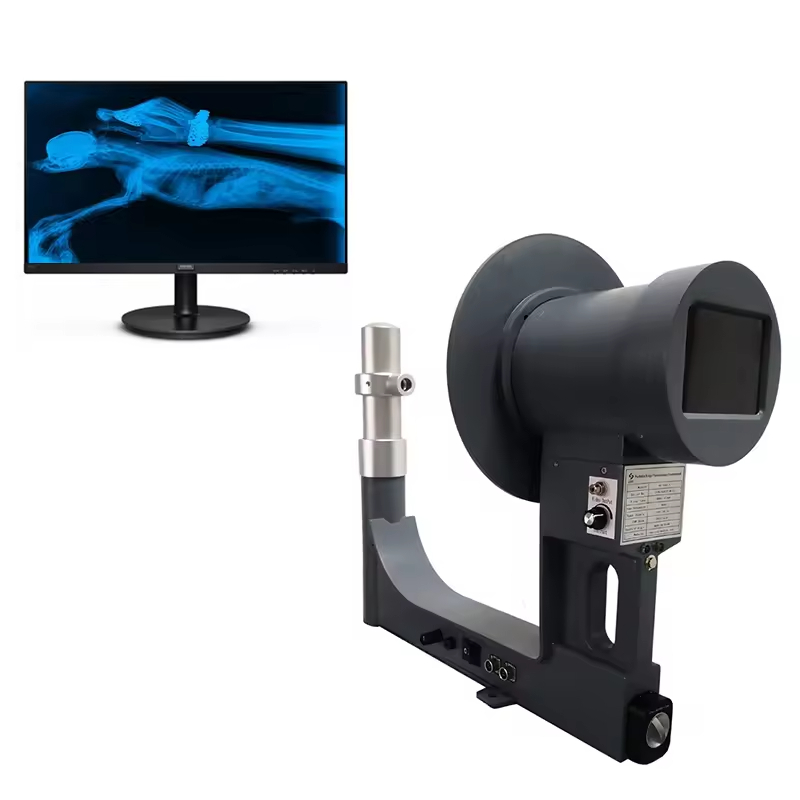

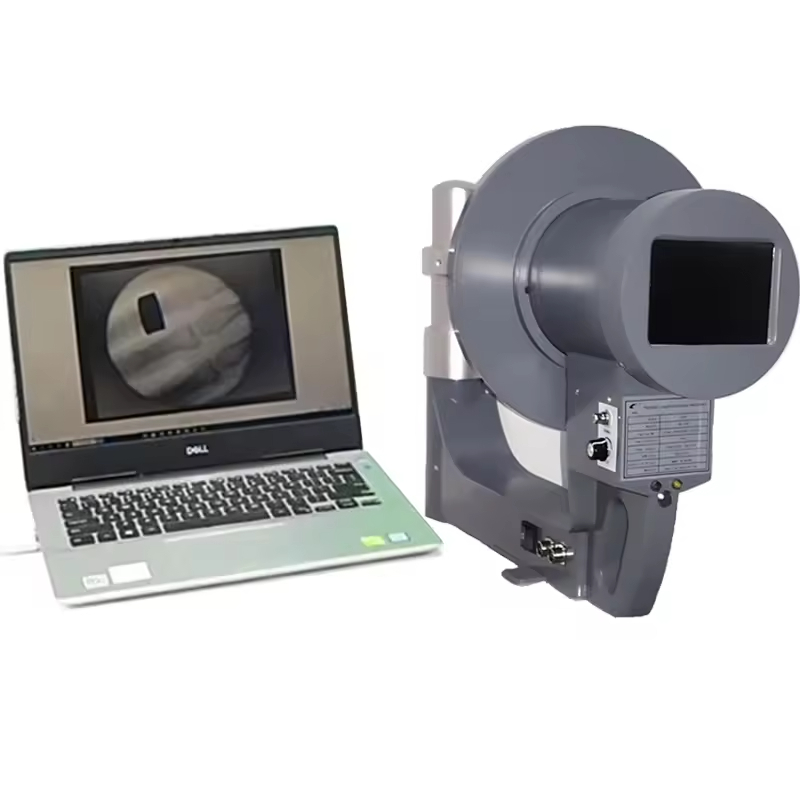

    The JZXR XR-100C-2 Portable X-ray System is a compact fluoroscopy unit designed for precise imaging in podiatry, orthopedics, and mobile medical applications. Equipped with a high-resolution detector and ultra-low X-ray leakage, this system provides safe and effective real-time imaging in limited clinical spaces.

    Specification

    Product Name Portable X-Ray Fluoroscopy Instrument
    Model# XR-100C-2
    Product Application The detection of Pet/Veterinary, Limbs/Orthopedic, Chip/Electronic, Pottery
    Field of View Φ 100mm
    Resolution 46 lp/cm
    Maximum Detection spacing ≤ 280mm
    X-ray Output 80 Kv/0.5 mA
    X-ray leakage ≤1.0mGy/h (the air kerma in the area of any-100 cm2  from the focus point 0.5m)
    Contrast 4%
    Grayscale Level 7
    Input Power 60-90 VA
    Output Brightness > 6cd/cm2
    Power Consumption 80W
    Power Supply 220V/50HZ
    Rechargeable Battery Optional
    Product Packaging Copper Alloy Suitcase
    Product Net Weight/Gross Weight 8 kg / 17kg
    Warranty Period 12 Months

    Application

    Ideal Applications

    •  Podiatry clinics

    •  Orthopedic diagnosis

    •  Sports medicine centers

    •  Mobile health vans

    •  Surgical guidance systems

    •  Veterinary imaging (small animals)


      Why Choose This System?

    •  Compact & Mobile – Lightweight for portable use

    •  High Image Clarity – Space resolution ≥ 51 lp/cm

    •  Safe Design – Ultra-low radiation leakage (≤1.0mGy/h)

    •  Customizable – OEM & ODM available

    •  Ready to Ship – In-stock availability for quick dispatch
