Product Introduction

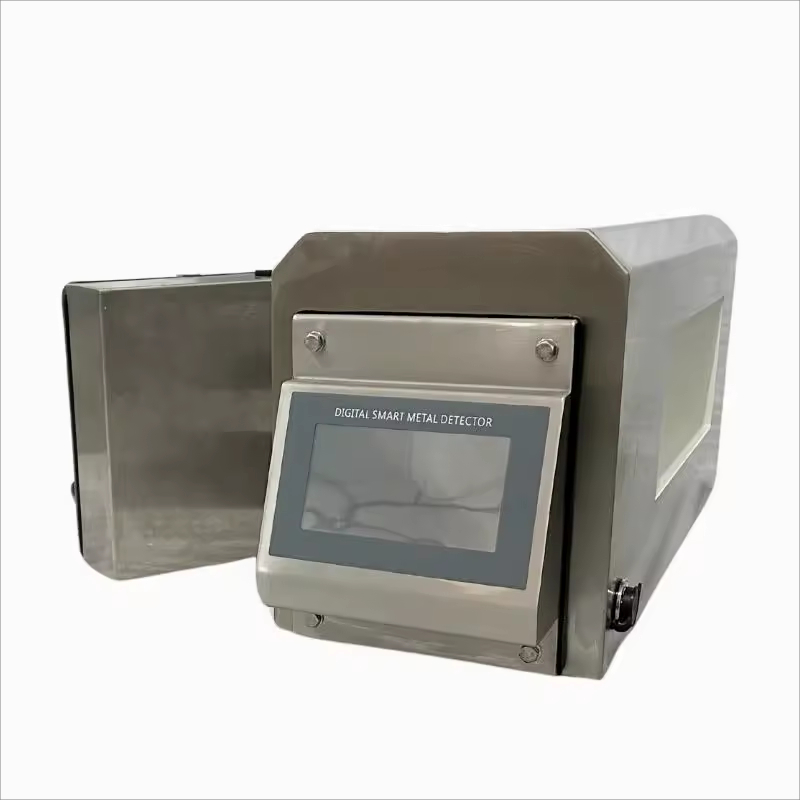

JZXR XR-506 Conveyor Metal Detector – High Sensitivity Detection for Food Safety
The XR-506 Metal Detector Head is a high-performance inspection solution designed for the food, pharmaceutical, and packaging industries. Equipped with a 7-inch full touch screen and a user-friendly interface, it offers precise detection of ferrous, non-ferrous, and stainless steel contaminants. With modular design, automatic rejection, and hygienic stainless steel housing, it ensures reliable quality control and easy integration into high-speed production lines.
High Sensitivity & Stability – Detects various metal types with exceptional accuracy
User-Friendly Operation – Intuitive interface and multi-language support
Durable & Hygienic – Stainless steel build with up to 10 years of life cycle
Labor-Saving Automation – Auto-reject mechanism improves efficiency
Custom Support & Warranty – OEM/ODM accepted, 18-month warranty
Secure your brand reputation and streamline your production with XR-506.
Specification
| Available Aperture Width(mm) | 250-1500 | |||
| Aperture Height(mm) | Detection Senstivity(φmm） | |||
| DH | TH | Ferrous | Non-Fe | SUS |
| 80 | 50 | 0.6 | 0.8 | 1.0 |
| 100 | 70 | 0.8 | 1.0 | 1.2 |
| 120 | 90 | 0.8 | 1.2 | 1.5 |
| 150 | 120 | 1.0 | 1.2 | 1.5 |
| 180 | 150 | 1.2 | 1.5 | 2.0 |
| 200 | 170 | 1.5 | 2.0 | 2.5 |
| 250 | 220 | 1.5 | 2.0 | 2.5 |
| 280 | 250 | 2.0 | 2.5 | 3.0 |
| 300 | 270 | 2.0 | 2.5 | 3.5 |
| 350 | 320 | 2.5 | 3.5 | 4.0 |
| 380 | 350 | 3.0 | 3.5 | 4.0 |
| 400 | 370 | 3.5 | 4.0 | 4.5 |
| 500 | 470 | 4.0 | 5.0 | 5.5 |
