    XR-506 7'' Full Touchable Screen Conveyor Metal Detector Metal Detector Conveyor

    Introduce：
    The JZXR Conveyor Metal Detector is a reliable inspection machine designed for detecting metal contaminants in production lines. With high sensitivity and automatic rejection, it ensures product safety and quality control in food, pharmaceutical, and industrial applications.

    Online Message

    Product Introduction

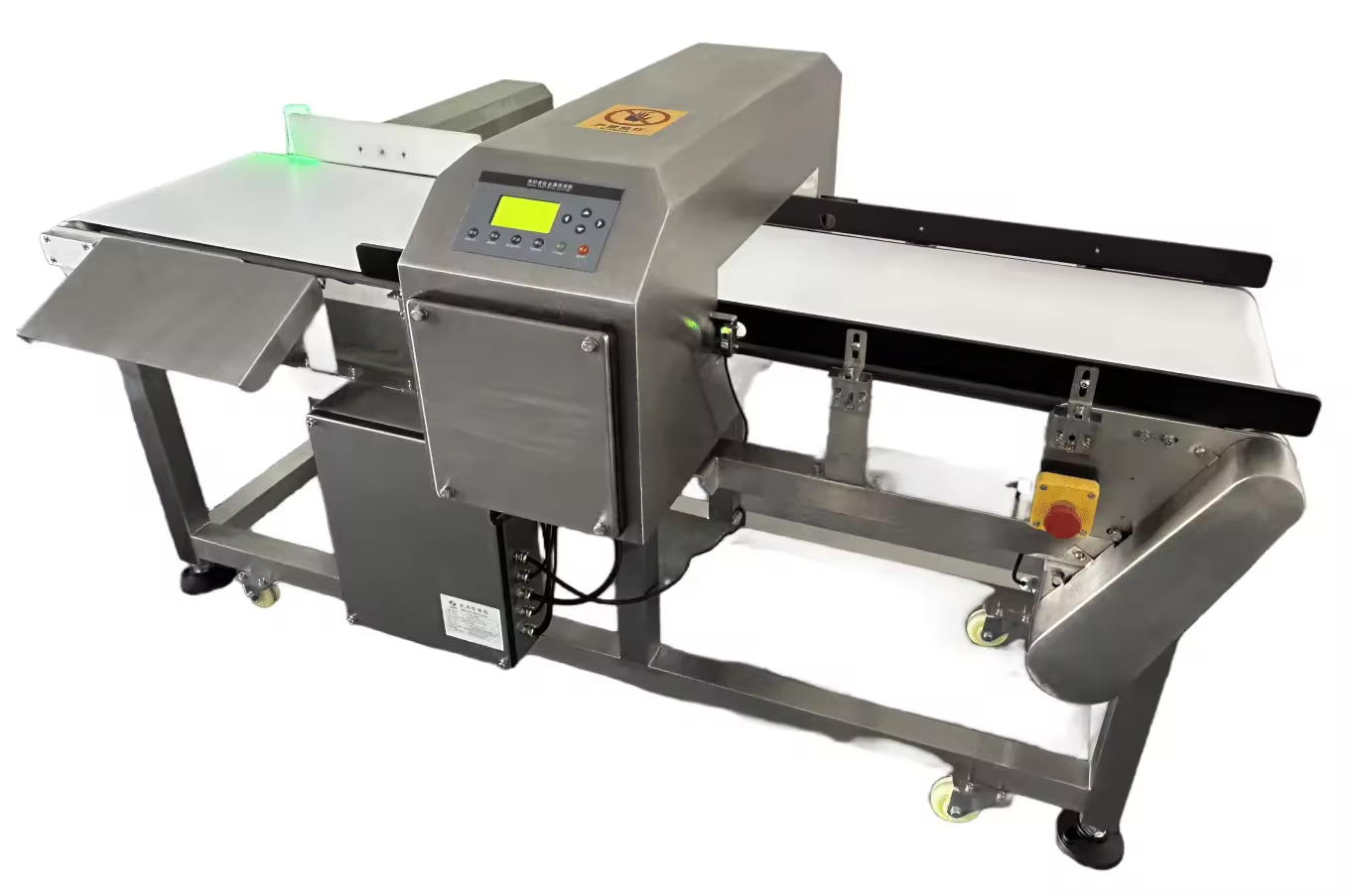

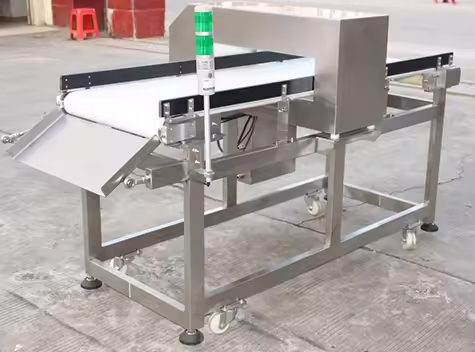

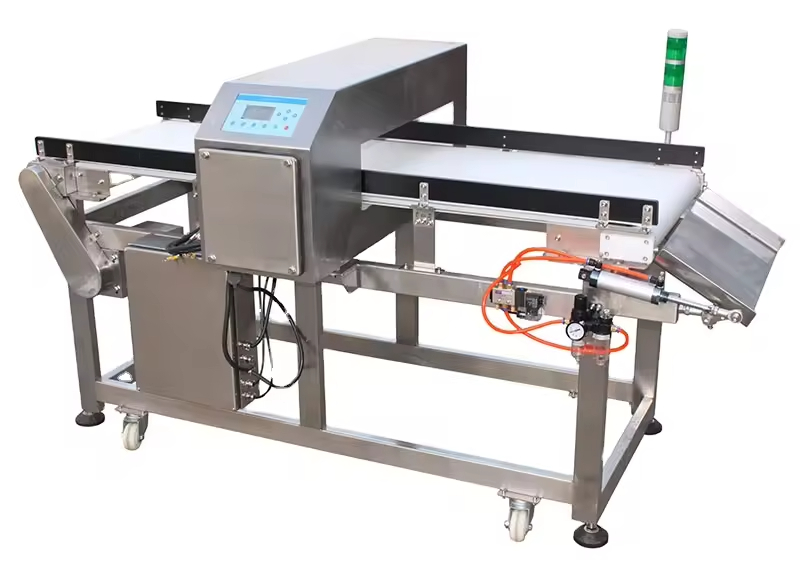

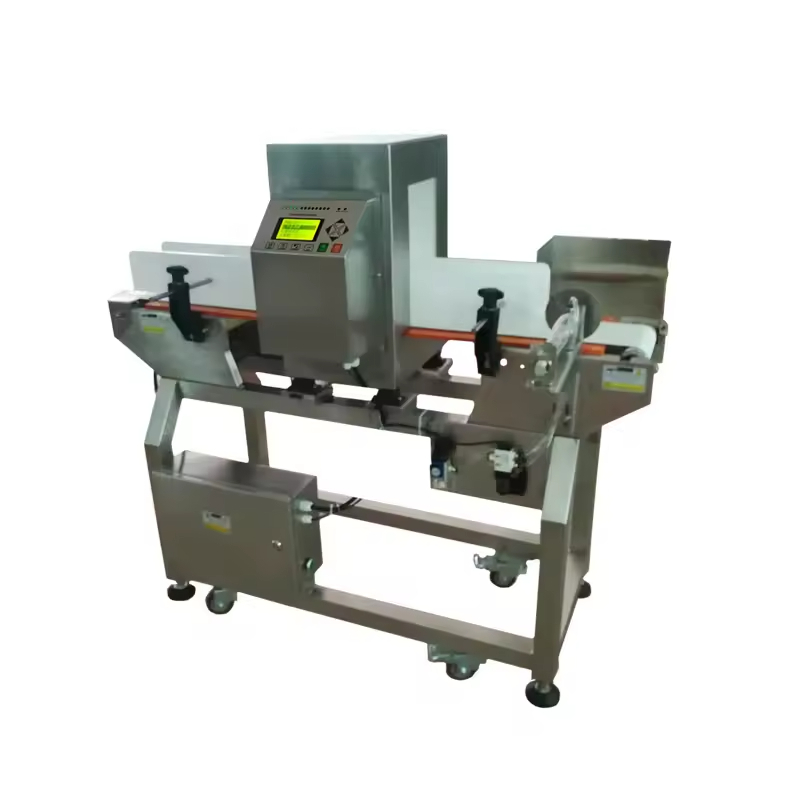

    The JZXR XR-506 Conveyor Metal Detector is a next-generation inspection solution featuring a 7-inch full touch screen, intuitive interface, and high detection sensitivity. It efficiently identifies ferrous, non-ferrous, and stainless steel contaminants in a wide range of products, making it ideal for food, pharmaceutical, and packaging industries.With automatic rejection, multi-language interface, and hygienic stainless steel design, the XR-506 ensures production safety, quality control, and easy operation on high-speed conveyor lines.
    Product Features:
    1.Easy operate: Modular design and installation, convenient for operating and maintenance.
    2.Good Service: Customized order is acceptable.
    3.Long Warranty: 18 months warranty policy.
    4.Long lasting: The life cycle can up to 10 years.
    5.Brand Safeguard: labor cost saving ,improve product quality and protect brand's reputation.

    Specification

    Model XR-506
    Conveyor height 680mm±30mm(can be customized)
    Memory function store 207 product parameters
    Operation Panel  English, Spanish,Chinese,etc
    LCD Screen 7'' Full touchable screen
    Tunnel width(mm) 400(can be customized)
    Conveyor length(mm) 1400(can be customized)
    Tunnel height(mm) 150
    Detection sensitivity Fe  1.0
    Non-Fe 1.2
    SUS304 1.5
    Load weight Within 5kg(can be customized)
    Material of  construction SUS304
    Conveyor belt White PVC or PU belt
    Conveyor direction From left to right/From right to left
    Control power AC220V(±10%-15% 50/60HZ)
    Buttons Emergency Stop Button & Start/Stop Buttons
    Working Temperature  0℃-40℃
    Humidity Below 90% Relative humidity(without condensate)
    Rejector Please refer to Automatic Rejection Systems

    Application

    Conveyor metal detector is suitable for the products packed with nonmetallic, like candy, chocolate, instant noodles, chips etc to detect the metallic impurities(ferrous, stainless steel)

    Main Components

    Manufacturing

    Our Customers

    Certifications
