Product Introduction

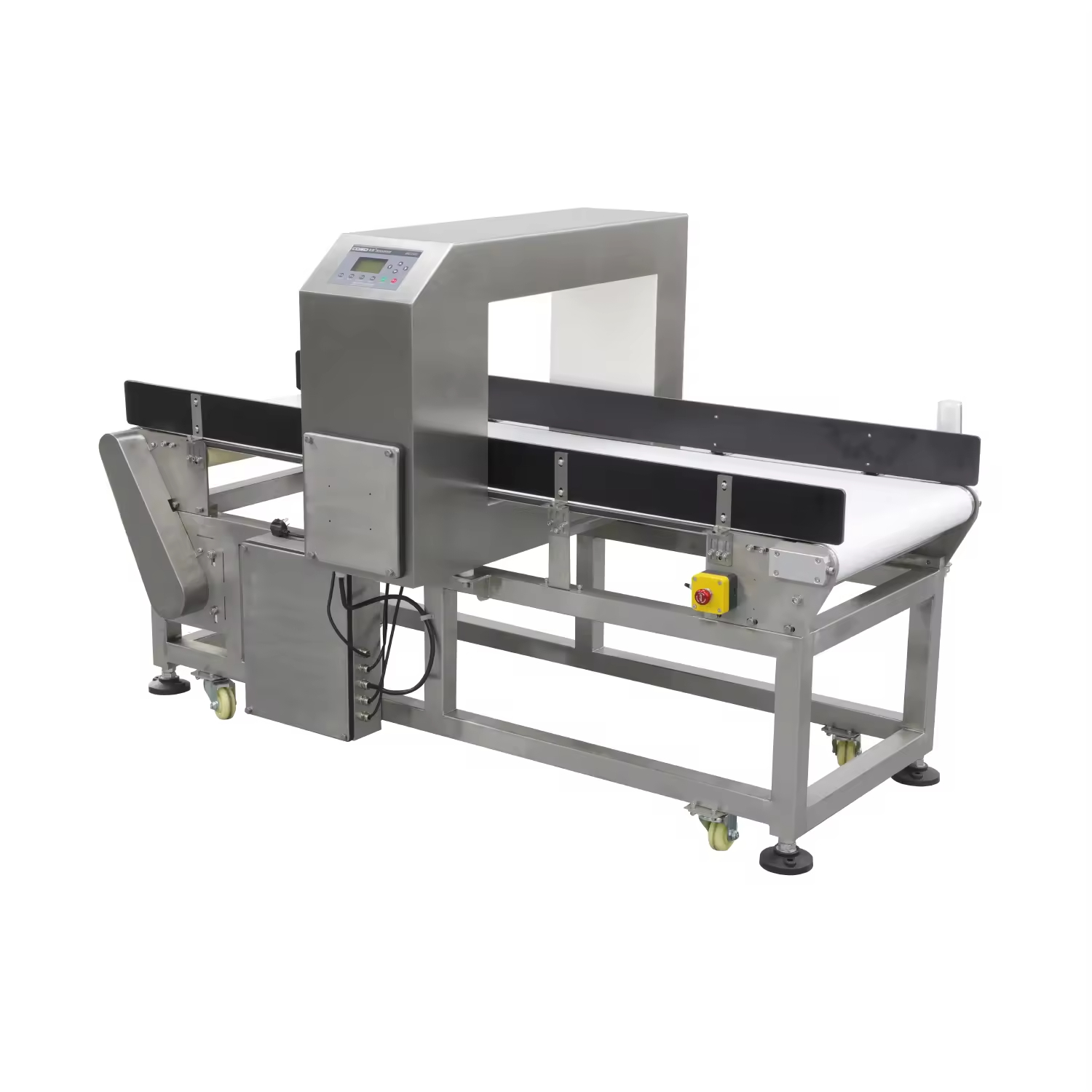

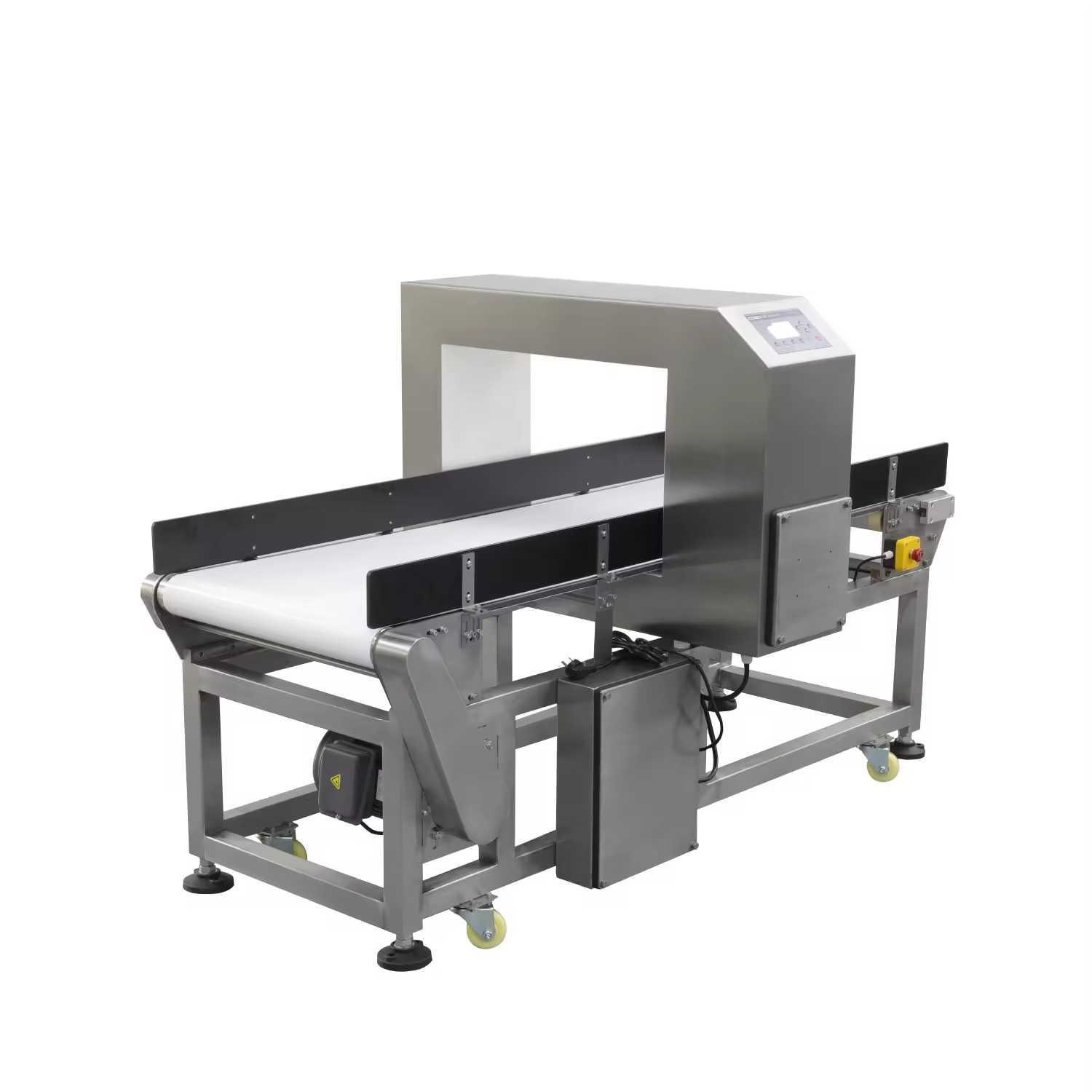

The JZXR XR Series Conveyor Metal Detector is designed for detecting ferrous, non-ferrous, and stainless steel contaminants in industrial production lines. With high detection accuracy, automatic rejection, and a hygienic stainless steel structure, it ensures product safety and compliance across food, pharmaceutical, packaging, and chemical industries.Customizable for different conveyor widths, sensitivity levels, and production needs. Ideal for quality control and inline inspection.
Specification
| Model | XR-980 | |
| Conveyor height | 680mm±30mm(can be customized) | |
| Memory function | store 100 product parameters | |
| Operation Panel | English, Spanish, Turkish,Portuguesse,Japanese,Chinese,etc | |

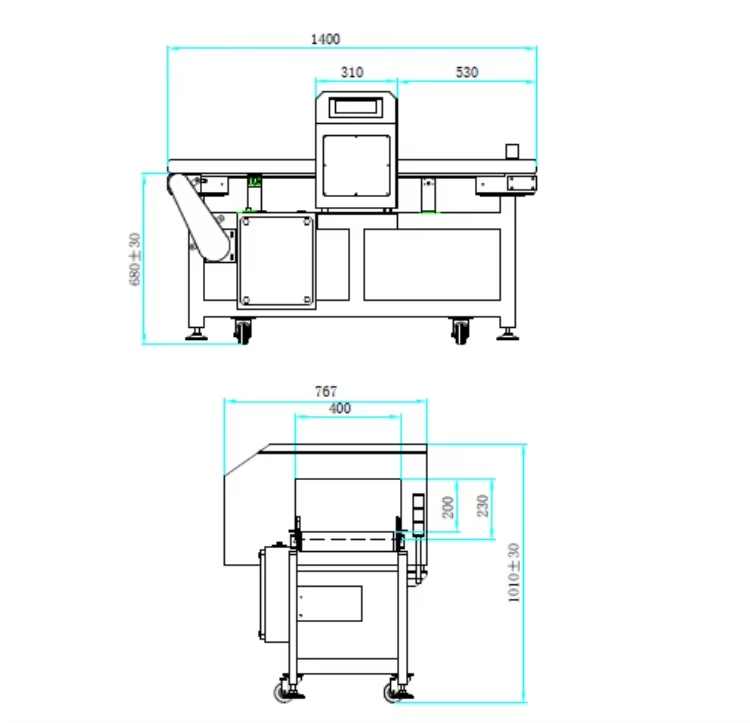

| Tunnel width(mm) | 400(can be customized) | |
| Conveyor length(mm) | 1400(can be customized) | |
| Tunnel height(mm) | 100 | |
| Detection sensitivity | Fe | 0.6 |
| Non-Fe | 0.8 | |
| SUS304 | 1.2 | |
| Load weight | Within 5kg(can be customized) | |
| Material of construction | SUS304 | |
| Conveyor belt | White PVC or PU belt | |
| Conveyor direction | From left to right/From right to left | |
| Control power | AC220V(±10%-15% 50/60HZ) | |
| Buttons | Emergency Stop Button & Start/Stop Buttons | |
| Working Temperature | 0℃-40℃ | |
| Humidity | Below 90% Relative humidity(without condensate) | |

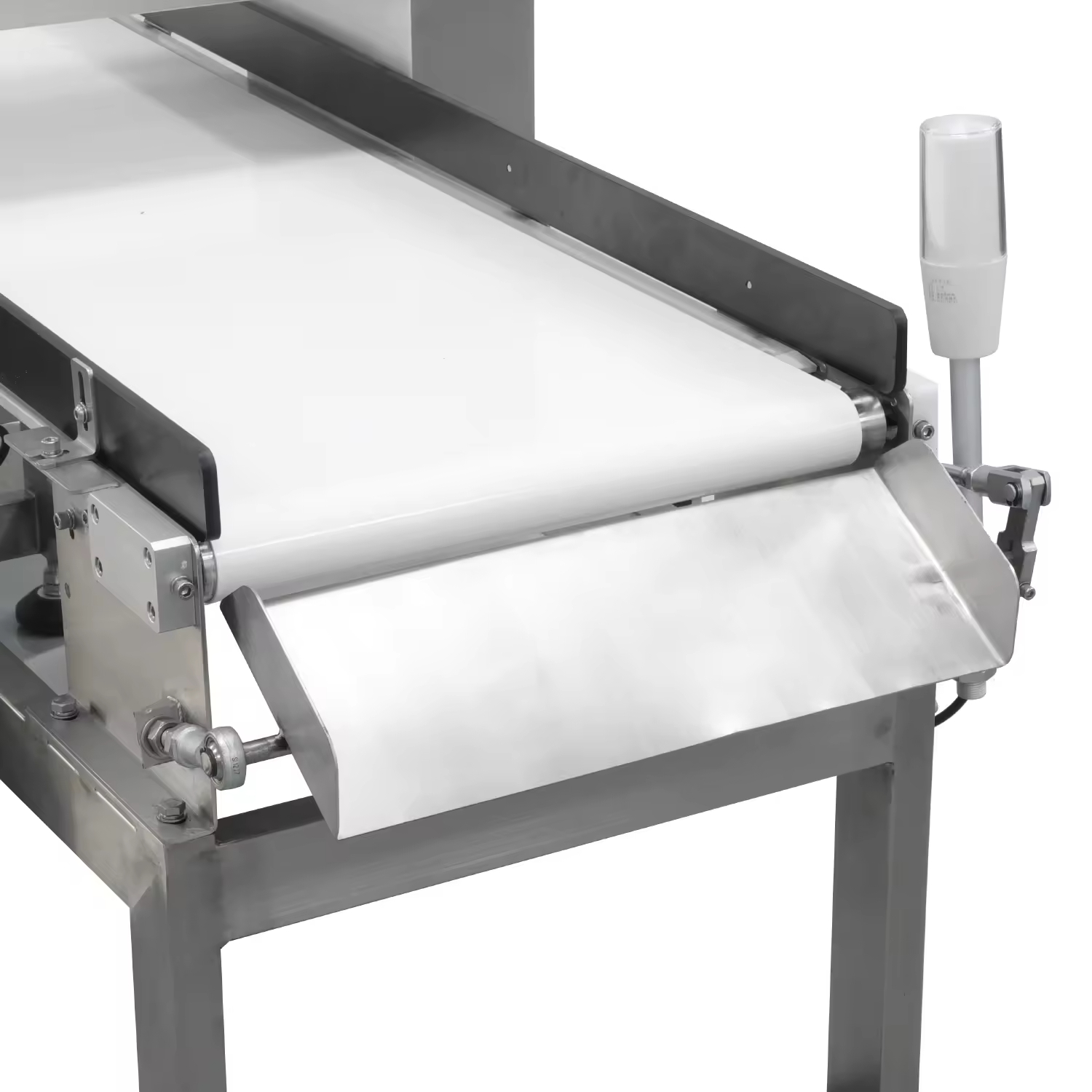

| Rejector | Please refer to Automatic Rejection Systems | |
Application

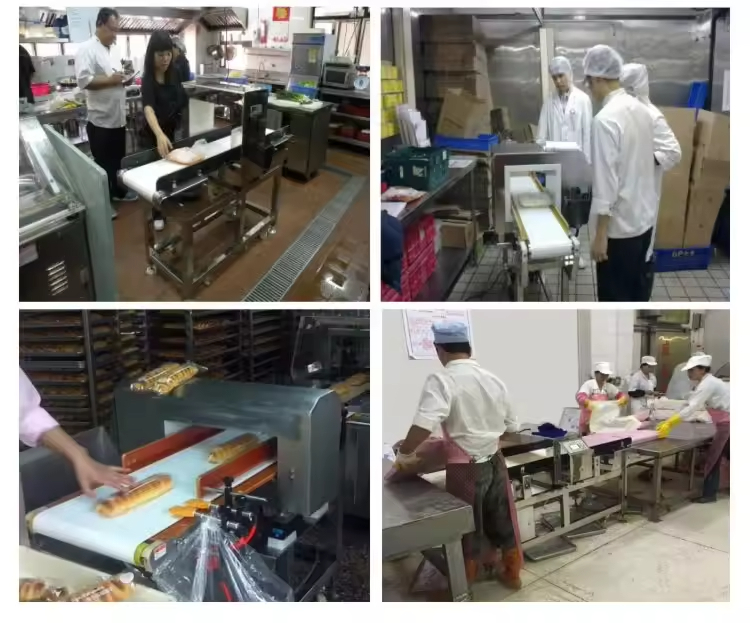

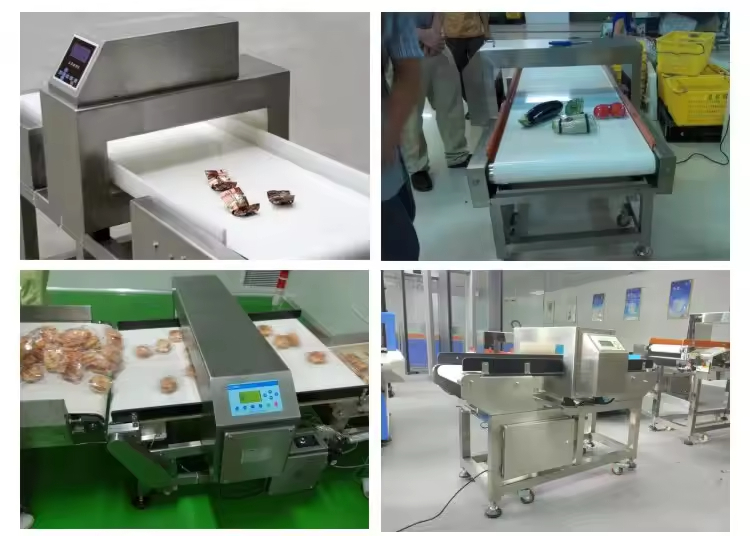

Conveyor metal detector is suitable for the products packed with nonmetallic, like candy, chocolate, instant noodles, chips etc to detect the metallic impurities(ferrous, stainless steel)
