Product Introduction

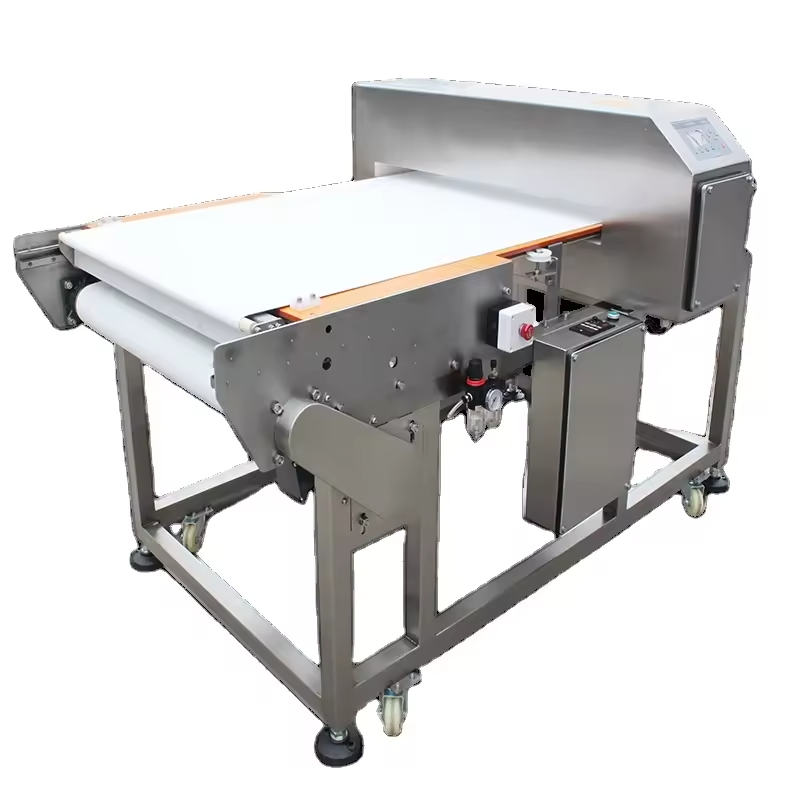

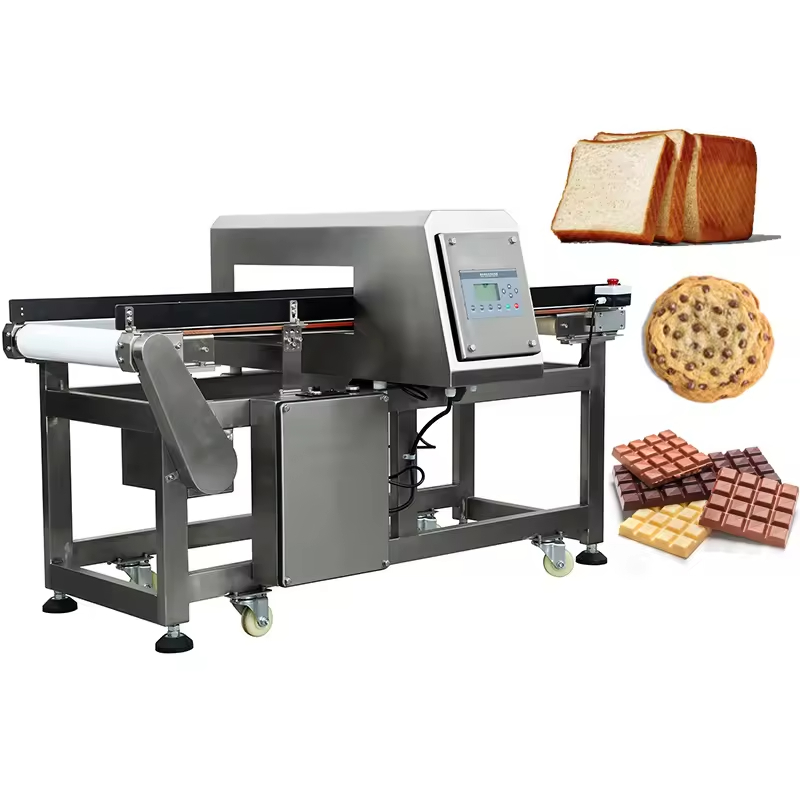

Juzheng XR-980 Conveyor Metal detector with Food Grade PU Belt for Unpacked Biscuit with Automatic Rejector.
JZXR metal detector series is high-sensitivity with automatic rejection system. Designed for conveyor-based inspection in food and industrial production lines.
Specification
| Model | XR-980 | |
| Conveyor height | 680mm±30mm(can be customized) | |
| Memory function | store 100 product parameters | |
| Operation Panel | English, Spanish, Turkish,Portuguesse,Japanese,Chinese,etc | |
| Tunnel width(mm) | 400(can be customized) | |
| Conveyor length(mm) | 1400(can be customized) | |
| Tunnel height(mm) | 100 | |
| Detection sensitivity | Fe | 0.6 |
| Non-Fe | 0.8 | |
| SUS304 | 1.2 | |
| Load weight | Within 5kg(can be customized) | |
| Material of construction | SUS304 | |
| Conveyor belt | White PVC or PU belt | |
| Conveyor direction | From left to right/From right to left | |
| Control power | AC220V(±10%-15% 50/60HZ) | |
| Buttons | Emergency Stop Button & Start/Stop Buttons | |
| Working Temperature | 0℃-40℃ | |
| Humidity | Below 90% Relative humidity(without condensate) | |
| Rejector | Please refer to Automatic Rejection Systems | |
