Product Introduction

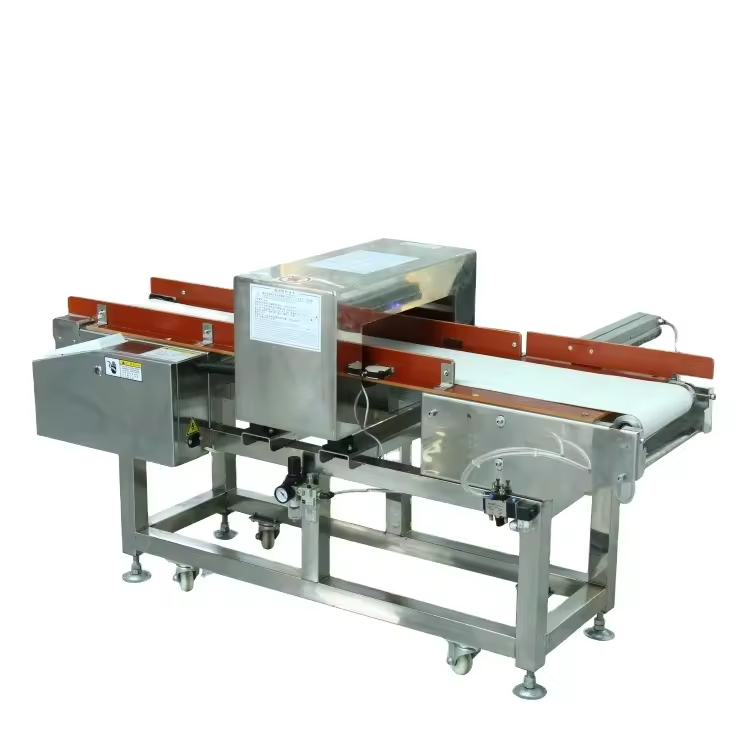

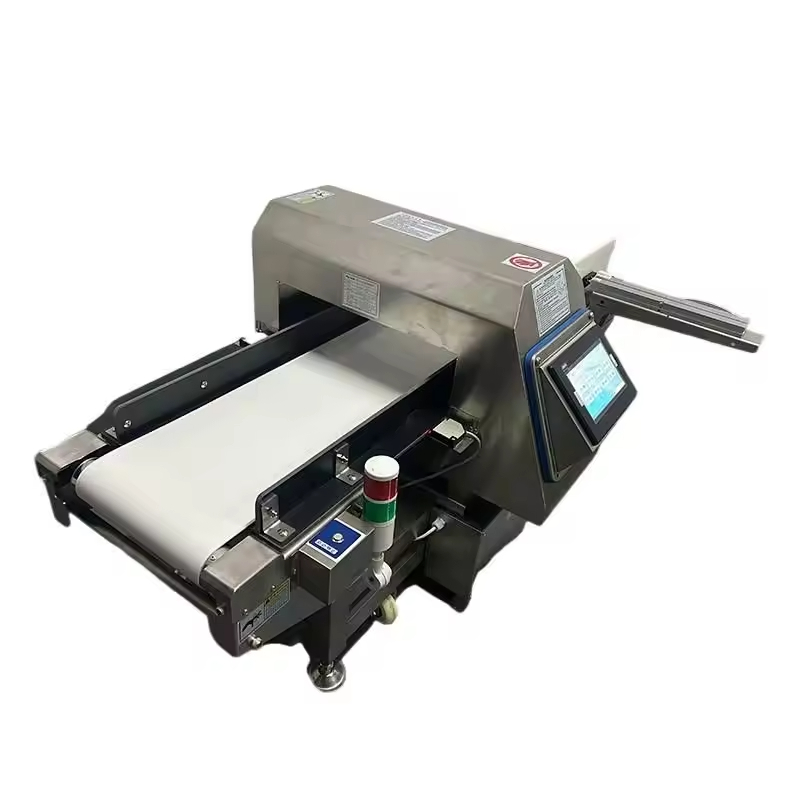

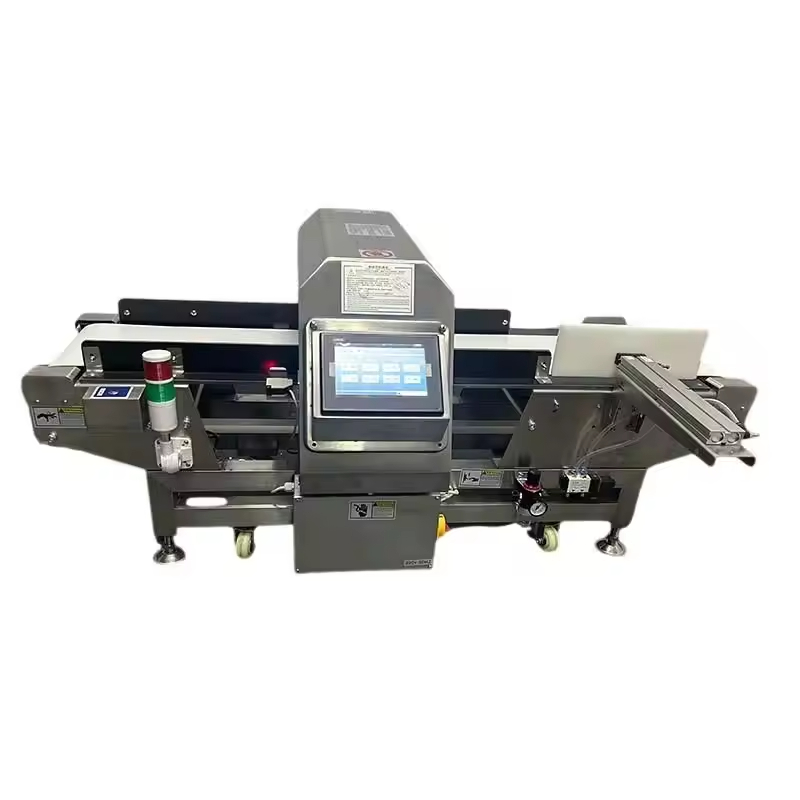

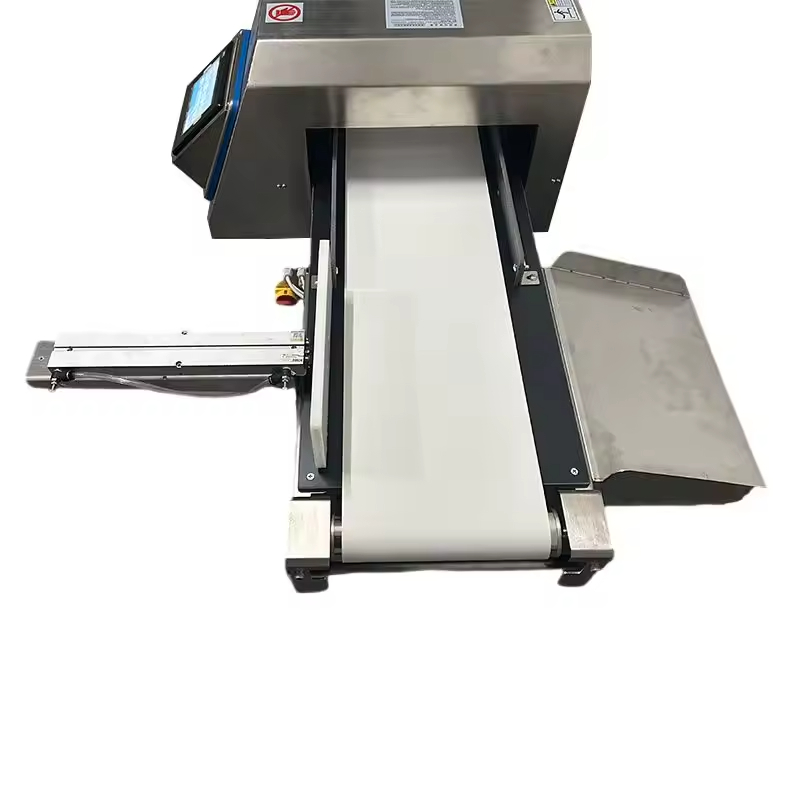

The XR-150C Needle Metal Detector is specially designed for detecting metallic contaminants such as ferrous and stainless steel in aluminum foil packaged products, including candy, chocolate, instant noodles, chips, and other snacks.
Equipped with high-sensitivity sensors and a conveyor system, the XR-150C offers accurate, reliable, and efficient detection without being affected by the aluminum layer. It is widely used in food production lines requiring metal detection beyond standard electromagnetic technology.Supports OEM/ODM customization, and ideal for quality control in snack food, confectionery, and instant food factories.
Specification
| Model | XR-150C |
| Conveyor height)can be customized) | 680mm±30mm |
| Display screen | Key button |
| Tunnel width(mm) | 450(Can be customized) |
| Tunnel height(mm) | 100 |
| Sensitivity--Fe(mm) | 0.8 |
| Conveyor direction | From lefto to right or From right to left |
| Reject method | Plaese refer to Automatic Rejection Systems |
| Power | AC 220V(±10-15% 50/60HZ) |
| Conveyor belt | White PVC or PU belt |
| Operation Language | English / Chinese |
| Working Enviroment | 0℃-40℃ |
| Material of construction | SUS304 |
| Humidity | 90% Relative humidity(without condensate) |

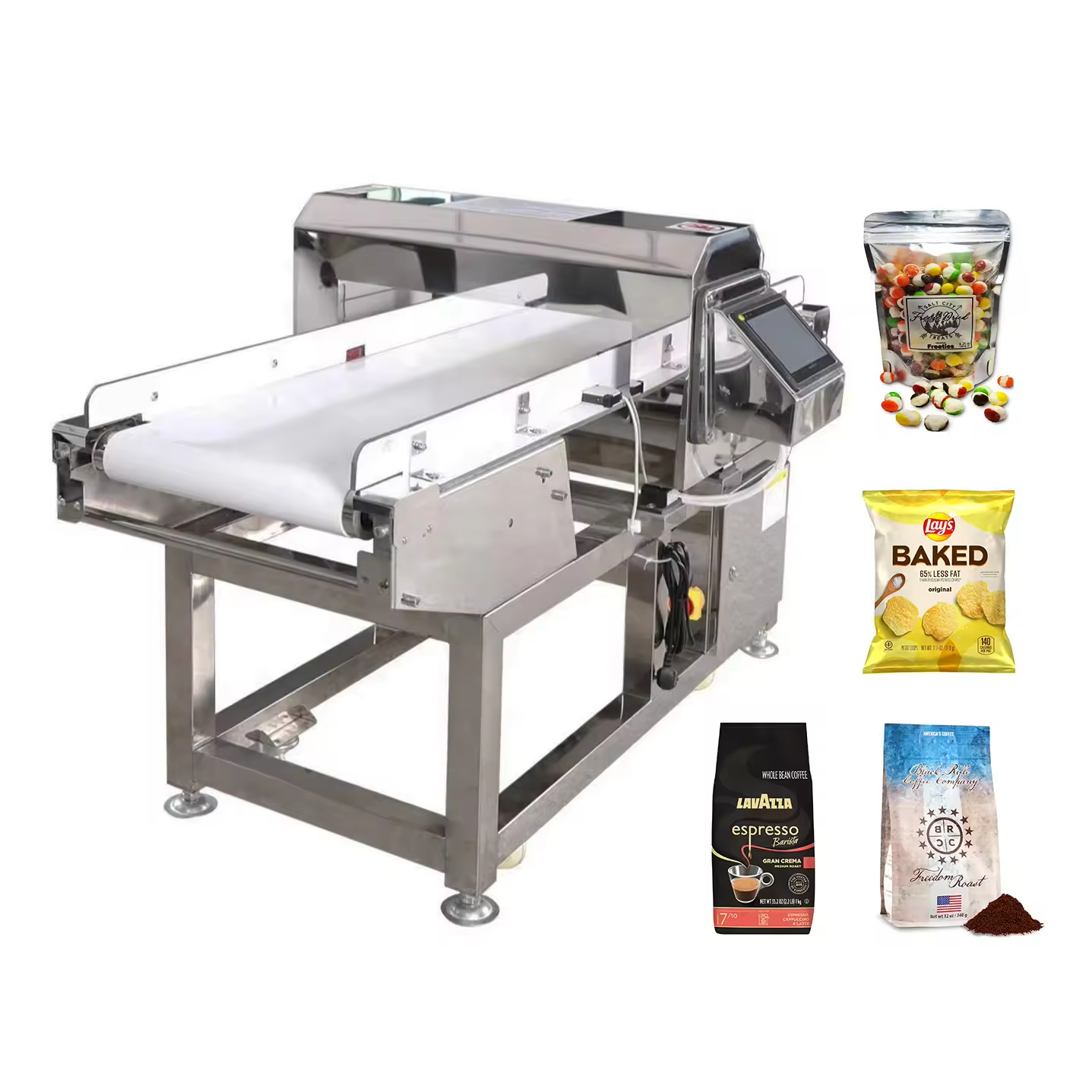

Application
XR-150C metal detector is suitable for aluminum fioil package product, like candy,chocolate, instant noodles, chips etc to detect the metallic impurities(ferrous, stainless steel).
Main Components
Manufacturing
Our Customers
Certifications
