Product Introduction

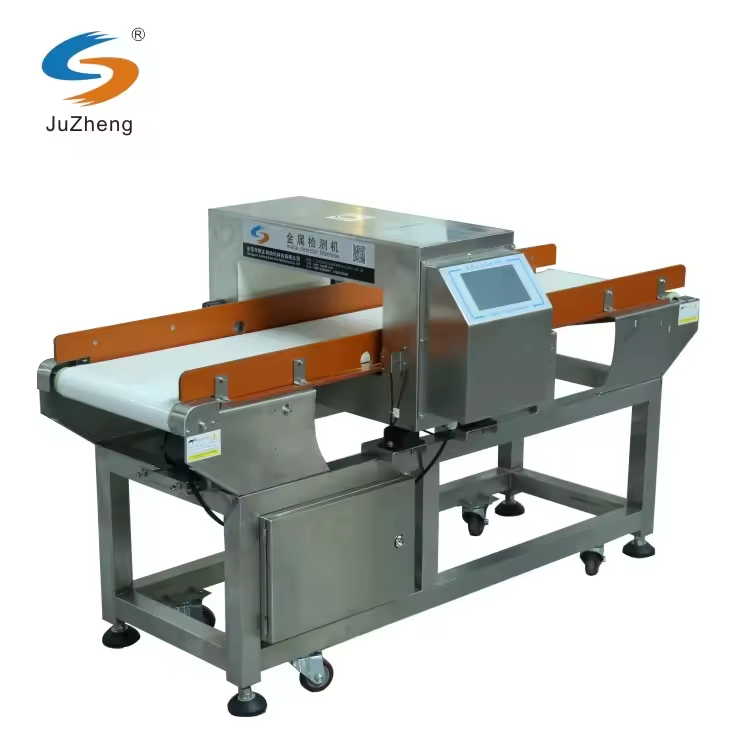

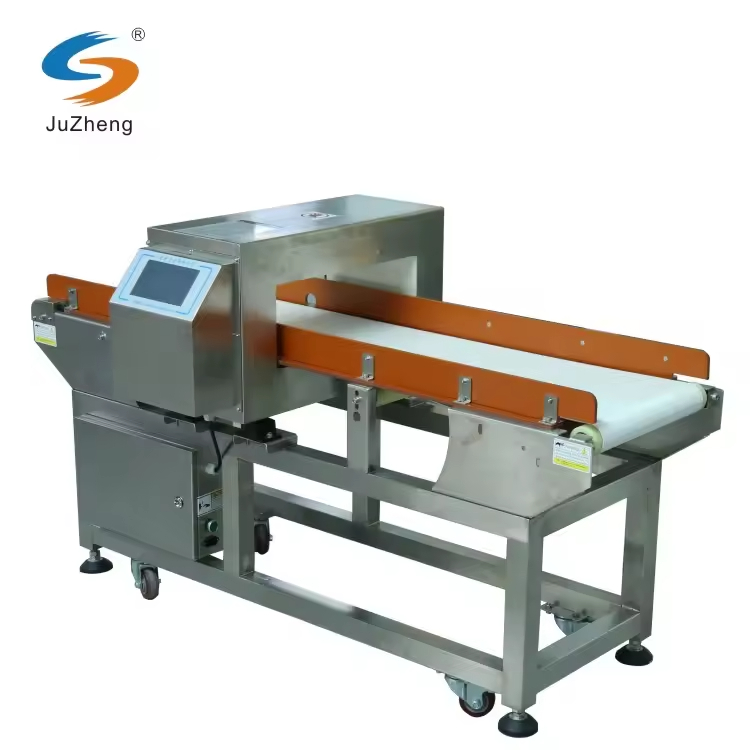

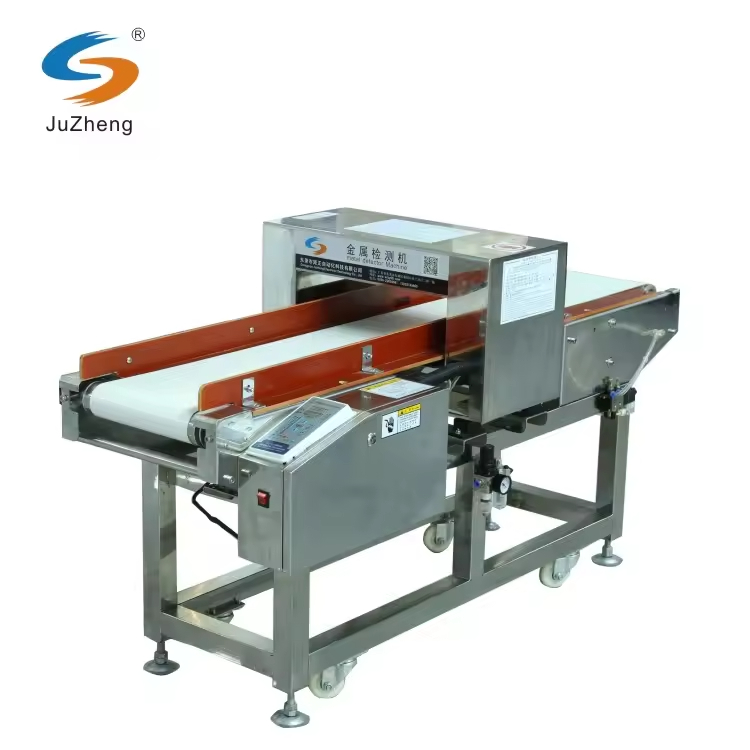

The JZXR Conveyor Metal Detector is a reliable inspection machine designed for detecting metal contaminants in production lines. With high sensitivity and automatic rejection, it ensures product safety and quality control in food, pharmaceutical, and industrial applications.
Specification
| Model | XR506-3 | ||||||
| Conveyor height | 680mm±30mm(can be customized) | ||||||
| Memory function | Store 207 product parameters | ||||||
| Operation Panel Languages | English/Spanish/Chinese etc | ||||||
| LCD Screen | 7'' Full touchable screen | ||||||
| Tunnel width(mm) | 400(can be customized) | ||||||
| Conveyor length(mm) | 1400(can be customized) | ||||||
| Tunnel height(mm) | 200 | 250 | 300 | 350 | 400 | ||
| Detection sensitivity | Fe | 1.2 | 1.5 | 2.0 | 2.5 | 3.5 | |
| Non-Fe | 1.5 | 2.0 | 2.5 | 3.5 | 4.0 | ||
| SUS304 | 2.0 | 2.5 | 3.0 | 4.0 | 4.5 | ||
| Load weight | Within 5kg(can be customized) | ||||||
| Material of construction | SUS 304 | ||||||
| Conveyor belt | White PVC or PU belt | ||||||
| Conveyor direction | From left to right/From right to left | ||||||
| Control power | AC220V(±10%-15% 50/60HZ） | ||||||
| Buttons | Emergency Stop Button & Start/Stop Buttons | ||||||
| Worling Temperature | 0℃-40℃ | ||||||
| Humidity | Below 90% Relative humidity (without condensate) | ||||||
| Rejector | Please refer to Automatic Rejection Systems | ||||||
Application

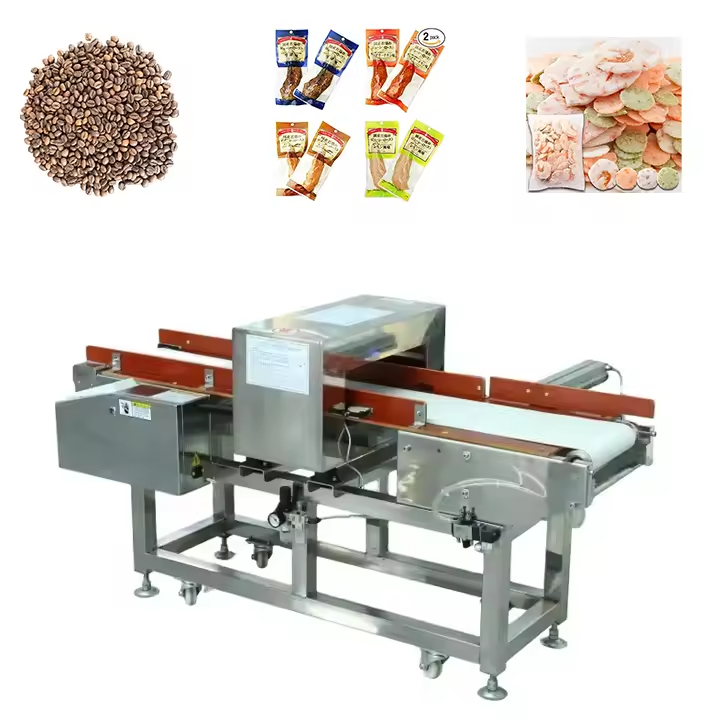

Conveyor metal detector is suitable for the products packed with nonmetallic, like candy,chocolate, instant noodles, chips etc to detect the metallic impurities(ferrous, stainless steel)
