Product Introduction

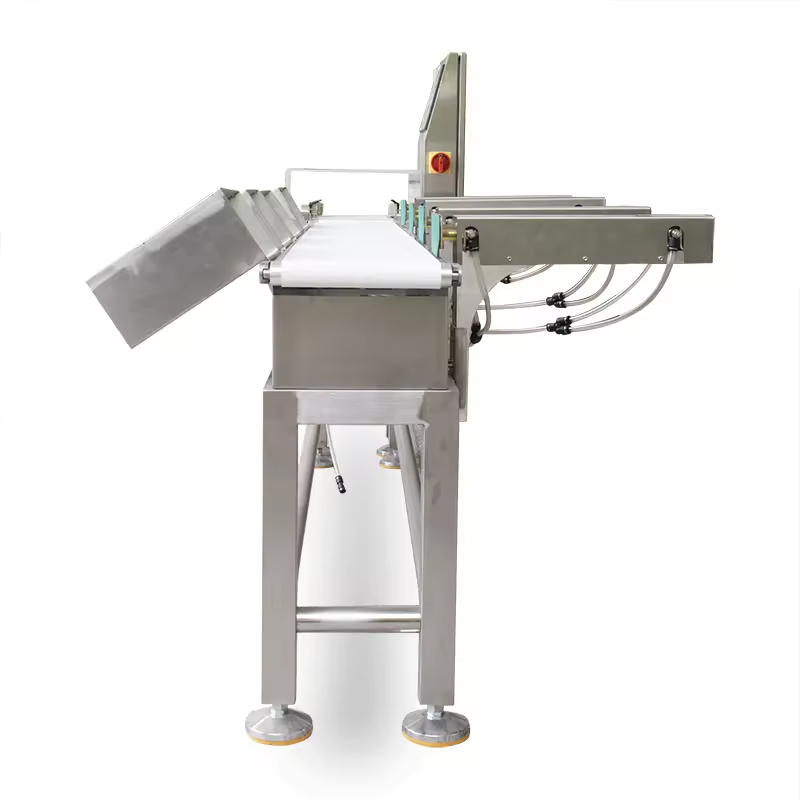

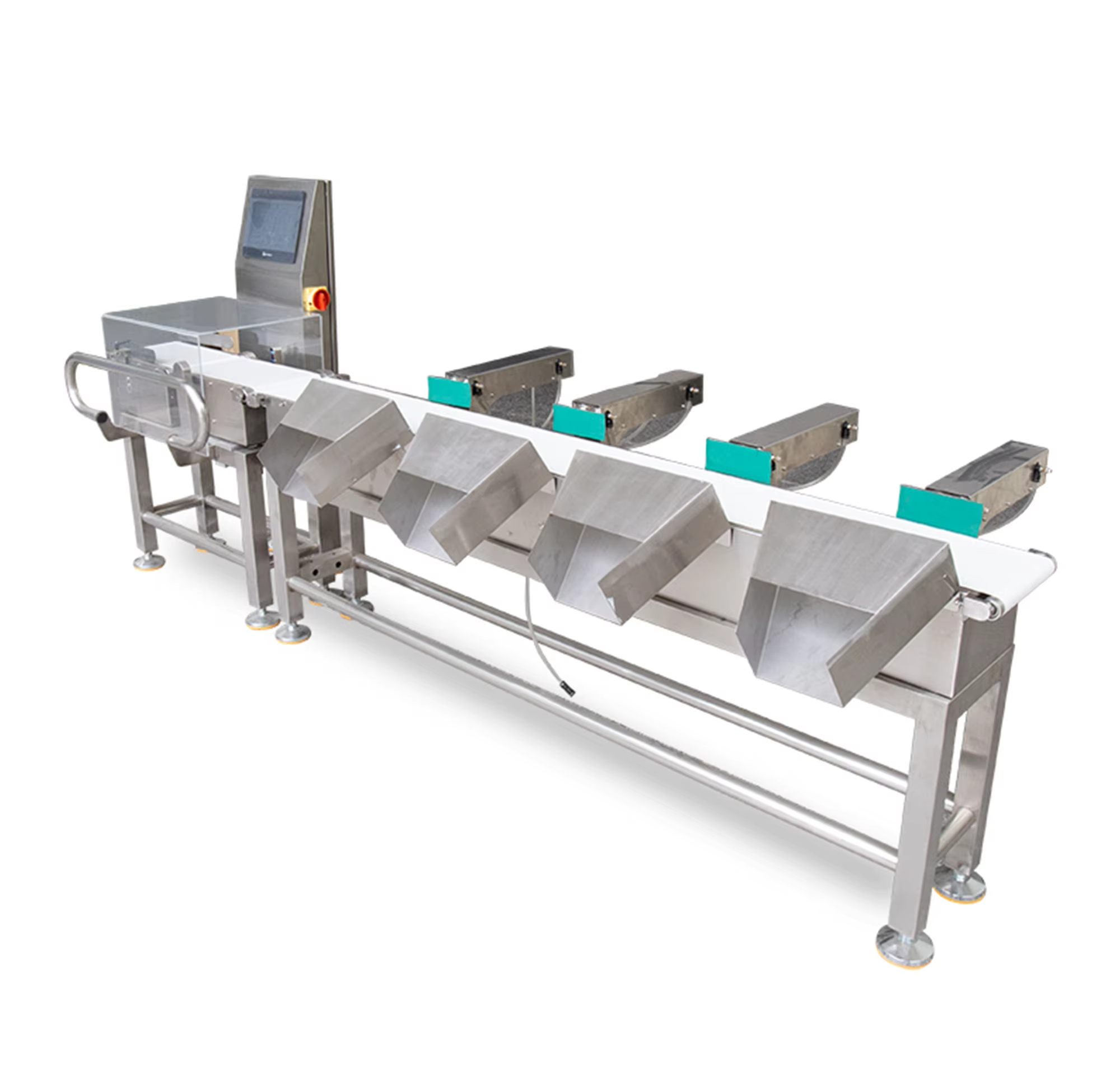

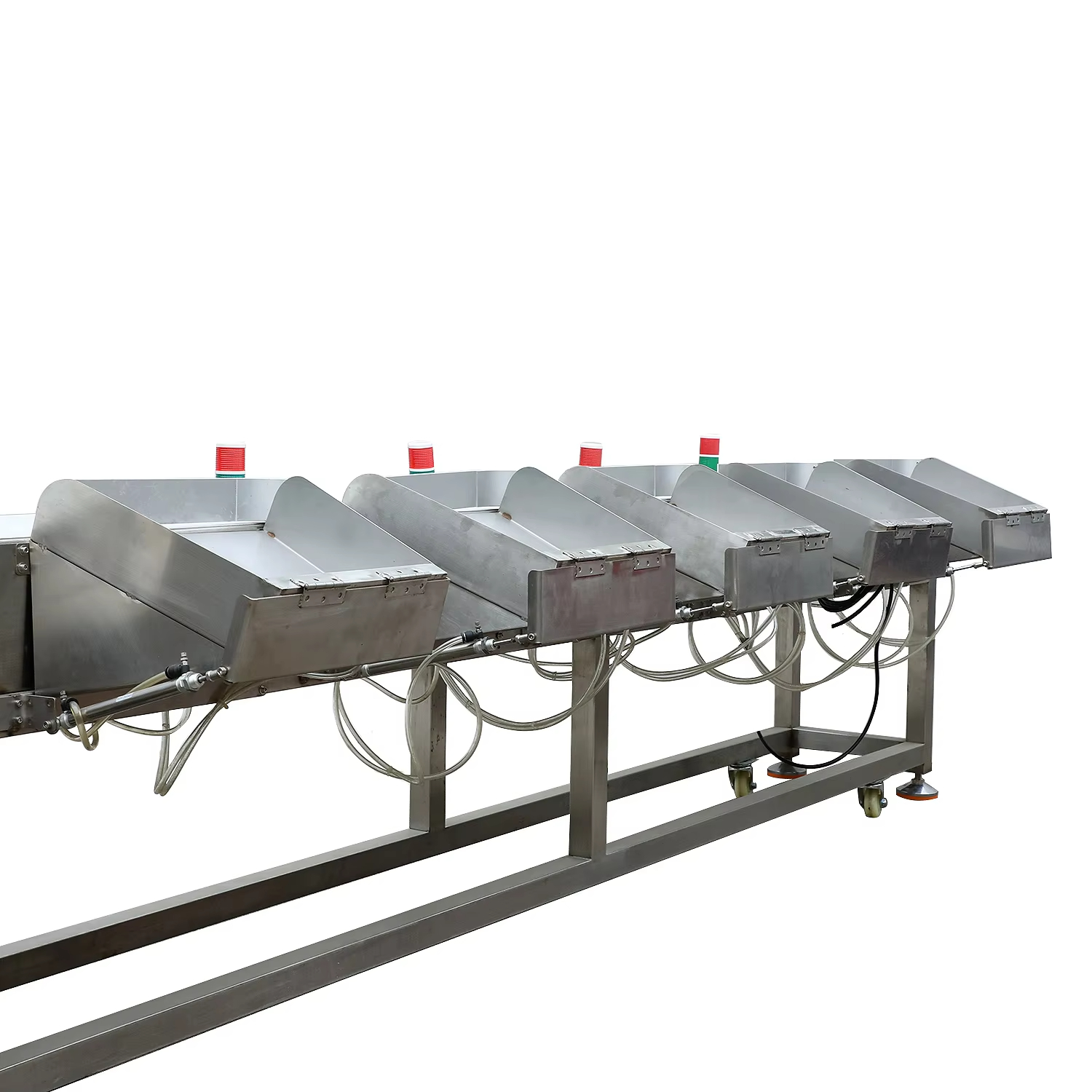

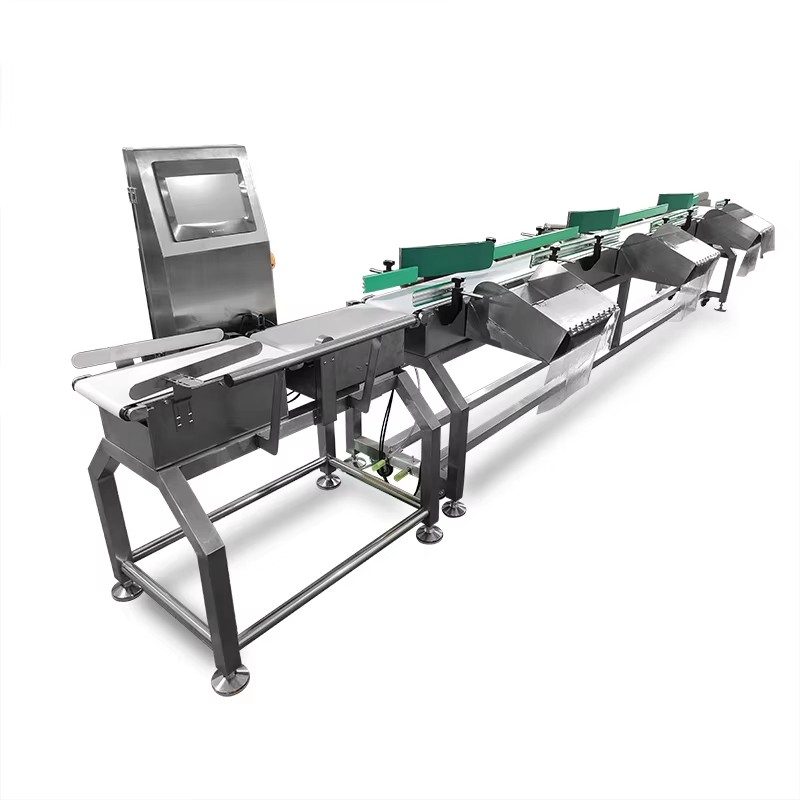

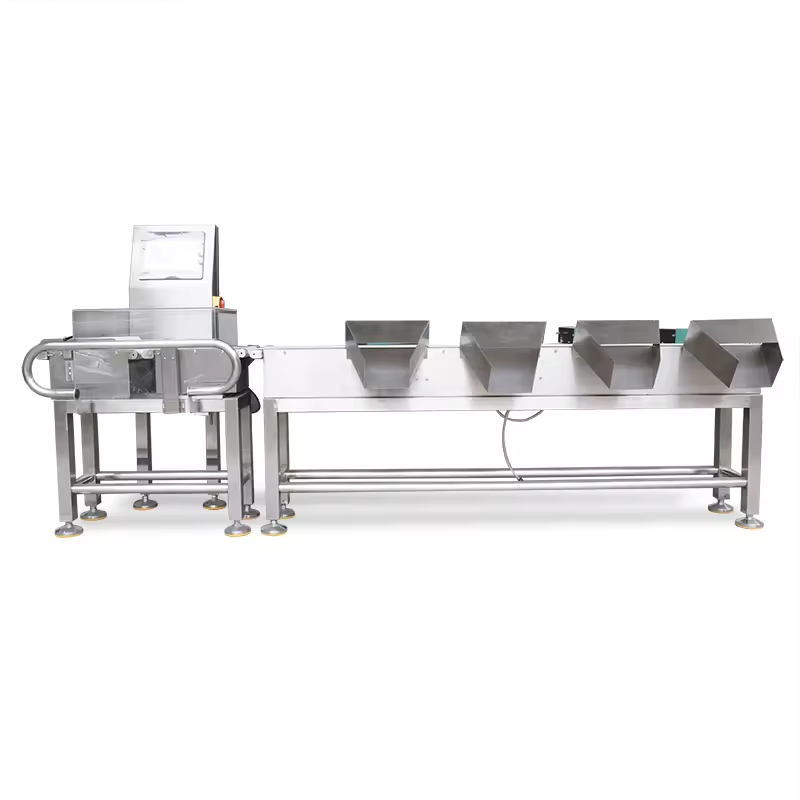

Juzheng Multilevel Weight Sorting Checkweigher is a high-precision dynamic checkweigher designed for real-time weight grading and online sorting. Widely used in the food industry—including seafood, fruit, vegetables, meat, and poultry—it automatically separates products into preset weight levels during conveyor transport. This intelligent weight grading system boosts production efficiency, ensures compliance, and reduces manual error.
Product Features & Functions
-
Multilevel Sorting: Automatically separates individual products into predefined weight groups.
-
Wide Applications: Ideal for seafood, fruits, vegetables, aquatic products, meat, poultry, and more.
-
Real-Time Accuracy: Online dynamic weighing with high-speed processing and precise control.
-
Preset Weight Ranges: Flexible grading levels can be customized based on your production needs.

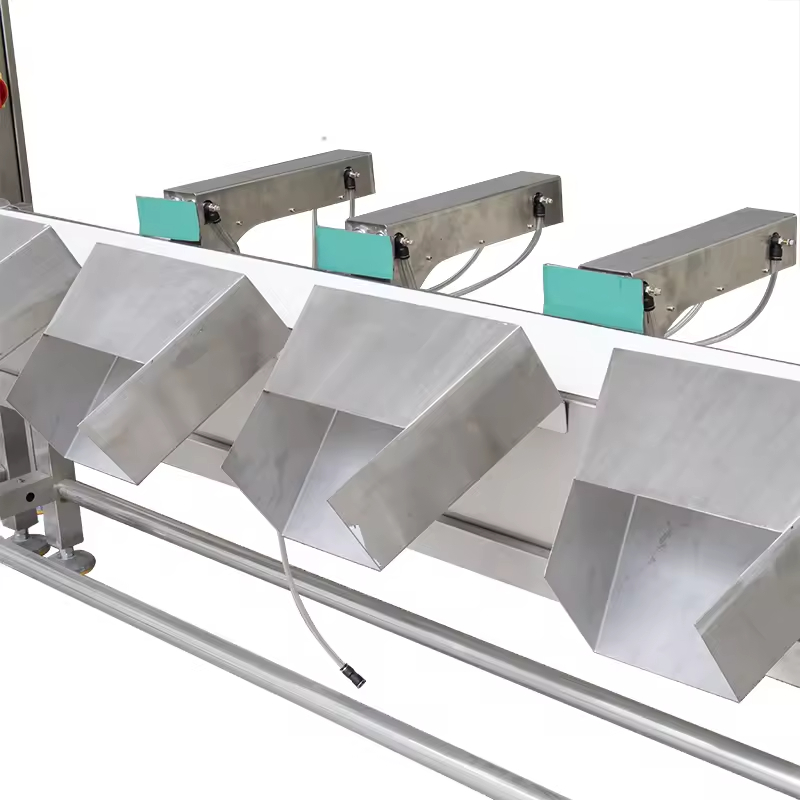

Integrated Rejection System: Redirects products to the correct lane according to weight classification.
Specification
| Model | XR-1kg-220mm | XR-1kg-300mm | XR-5kg-220mm | XR-5kg-300mm |
| Belt width (mm) | 220 | 300 | 220 | 300 |
| Weighing range(g) | ≤1000 | ≤1000 | ≤5000 | ≤5000 |
| Max Accuracy | ± 0.2g | ± 0.3g | ± 0.5g | ± 1g |
| Max speed(pcs/min) | 150 | 120 | 150 | 120 |
| Display resolution(g) | 0.1 | 0.1 | 0.1 | 0.1 |
| Conveyor direction | From left to right/ From right to left(face to screen) | |||
| Power | AC220V± 10%，50HZ(60HZ) | |||
| Operation Panel | 10'' Touchable Screen | |||
| Language | English / Chinese / Vietnamese | |||
| MS Weighing scale module | JZXR-80TL | |||
| Load cell | ZEMIC/HBM/Mettler Toledo | |||
| Conveyor belt | FDA White PU Food -grade belt with SGS certificate | |||
| Working Environment | 0℃~40℃ | |||
| Material of construction | SUS 304 | |||
| Rejection system | Please refer to Automatic Rejection Systems | |||
| Humidity | 90% Relative humidity (without condensate) | |||
Application
Typical Applications
-
Fish fillets sorted by weight (e.g. 100g–200g, 200g–300g, etc.)
-
Chicken parts or poultry graded into packaging categories
-
Fruits and vegetables classified for different pricing tiers
-
Frozen seafood weight standardization for export compliance
