Product Introduction

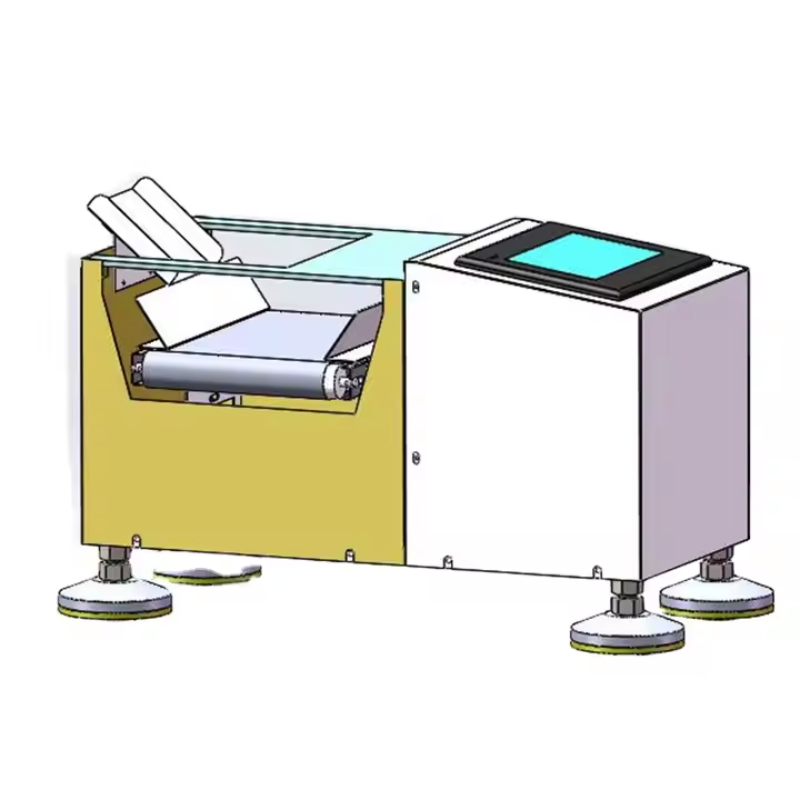

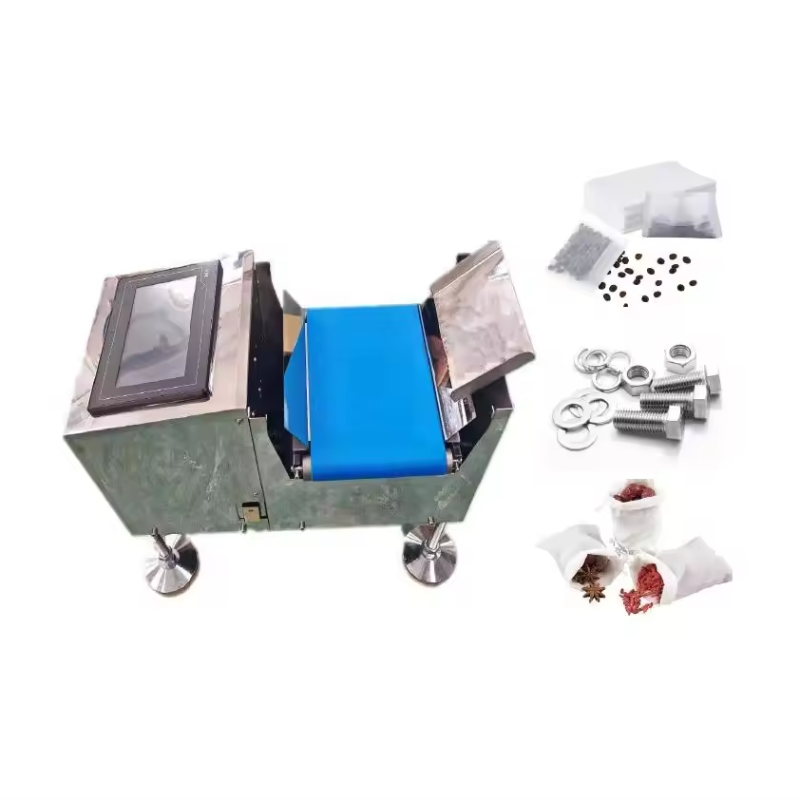

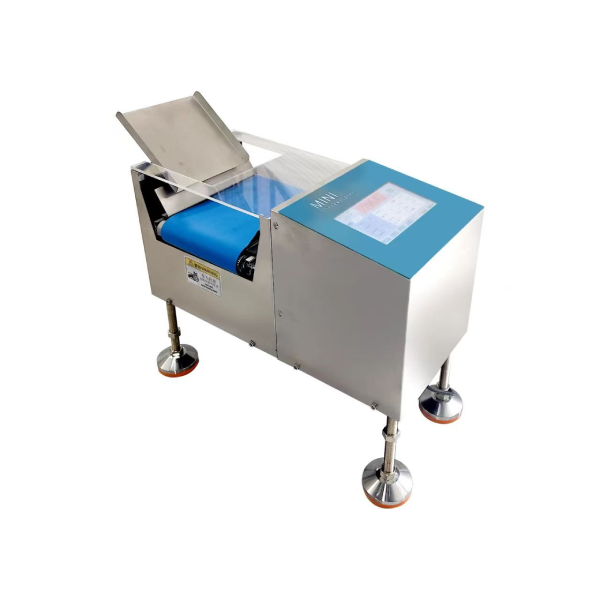

The Juzheng Mini Checkweigher is a compact, high-precision dynamic weighing solution designed for efficient inline weight inspection and sorting. Its left-right sorting mechanism ensures accurate separation of products based on weight criteria, making it an ideal choice for industries where precision and reliability are paramount.
Introduction:
1.Can be connected to vertical packaging machine to realize production line automation
2.Customized 7-inch high-definition touch screen, sensitive and responsive to touch, with clear text
3.Qualified and unqualified channels flow out in different channels, and qualified and unqualified channels can be freely switched
4.Store 100 product detection intervals for searching, editing, calling, and power-off saving.
5.Can count the total number, qualified, but qualified, pass rate, quantitative quantity. When the quantitative quantity equals the qualified quantity, the machine can stop and alarm.
Specification
|
Model |
Juzheng Mini Checkweigher Check Weigher Left and Right Sorting Scale |
|
Power Supply |
100V-240V, 50/60Hz |
|
Weighing Accuracy |
±0.1g~±0.2g(can identify materials with a single weight of 0.3 g and above 0.3 g) |
|
Reject Method |
Left and right reject |
|
Speed |
30-50 pcs/min |
|
Product Size |
524mm(L)*243mm(W)*345mm(H) |
|
Display |
7-inch highlight touch screen |
|
Maximum Weighing |
200g |
|
Conrtol System |
Self-developed A/D sampling controller |
|
Surroundings |
Temperature: -15℃~50℃, Humidity: 30%~95% |
|
Body Material |
SUS 304 |
Application
Remark:
To ensure that we will provide the correct and qualified machine, we will offer machine drawings for client’s approval when order confirmed and before production.
