Product Introduction

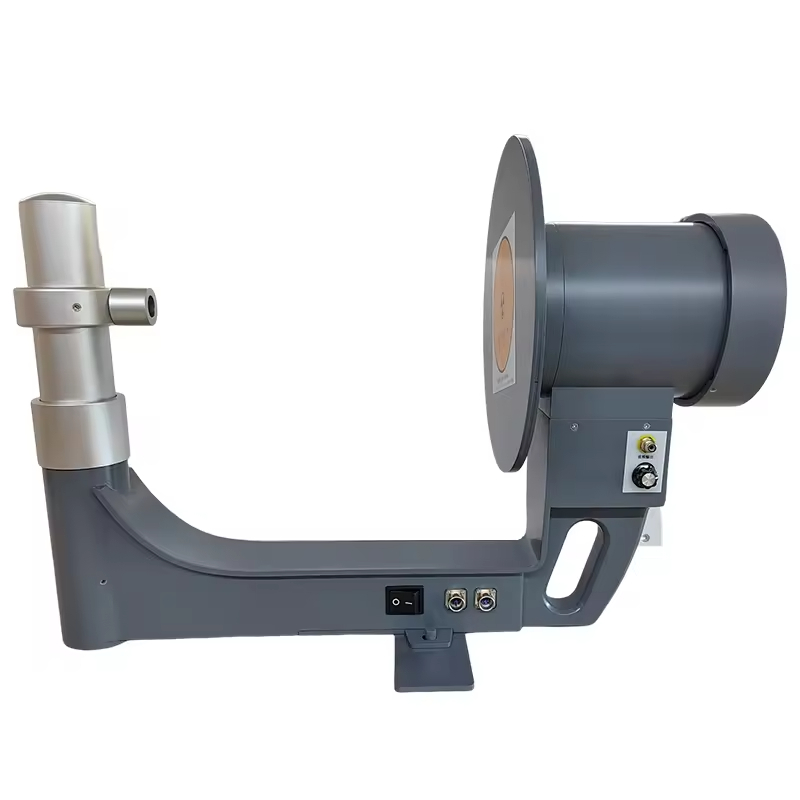

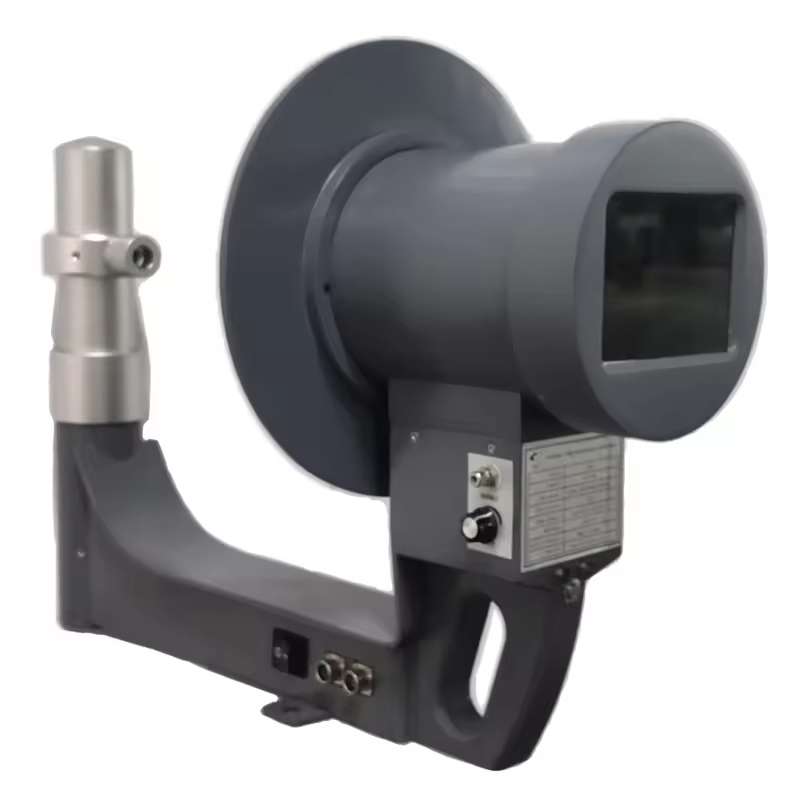

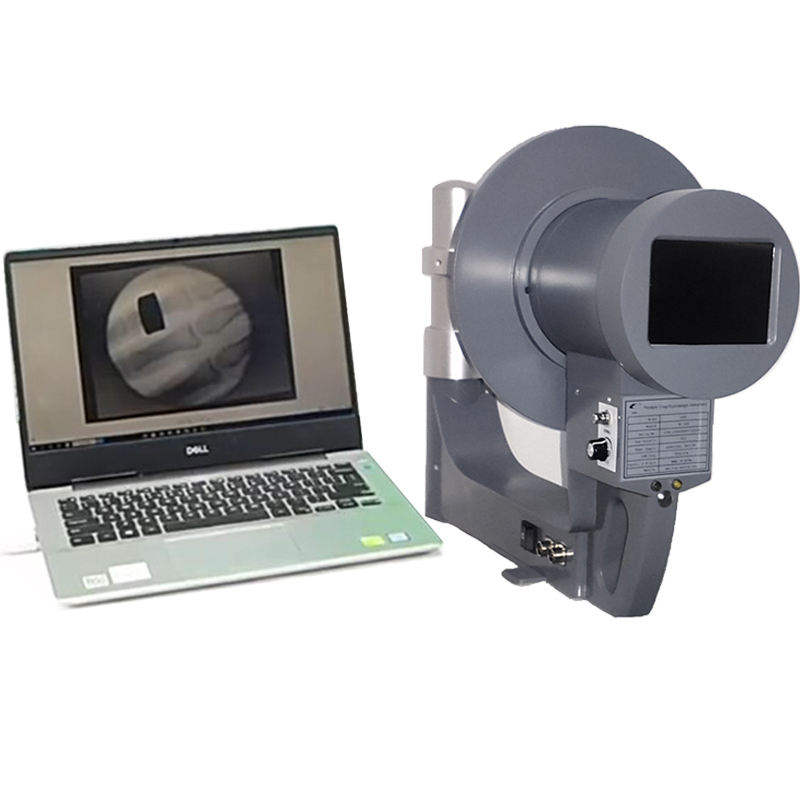

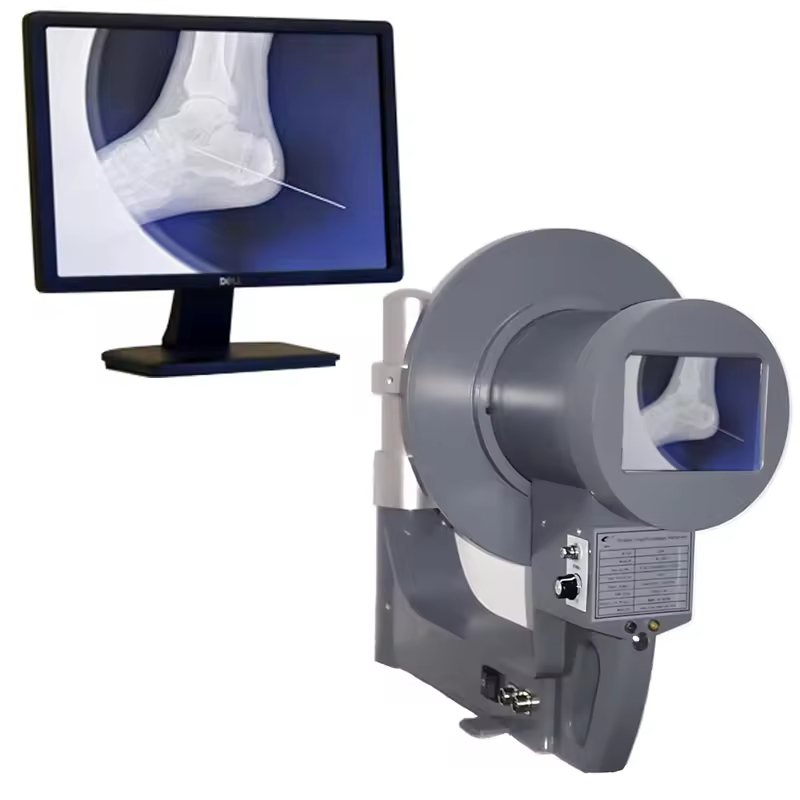

The JZXR SmartView is a high-performance digital X-ray imaging system designed for podiatry, orthopedic, and point-of-care medical diagnostics. Engineered for mobility and precision, it combines a compact footprint with advanced fluoroscopy capabilities.Equipped with a high-resolution detector, real-time imaging display, and minimal X-ray leakage, it ensures both patient safety and diagnostic accuracy. Its plug-and-play design makes it suitable for small clinics, mobile medical units, and specialty practices.
Specification
| Product Name | Portable X-Ray Fluoroscopy Instrument |
| Model# | XR-100C-3 |

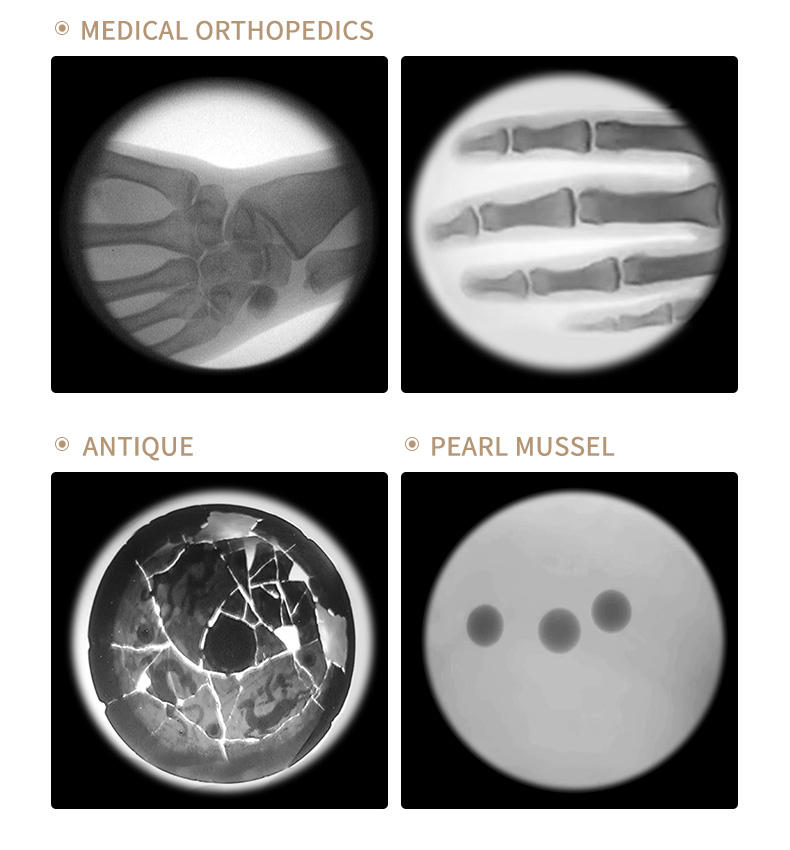

| Product Application | The detection of Pet/Veterinary, Limbs/Orthopedic, Chip/Electronic, Pottery |
| Field of View | Φ 100mm |
| Resolution | 46 lp/cm |
| Maximum Detection spacing | ≤ 280mm |
| X-ray Output | 80 Kv/0.5 mA |
| X-ray leakage | ≤1.0mGy/h (the air kerma in the area of any-100 cm2 from the focus point 0.5m) |
| Contrast | 4% |
| Grayscale | Level 7 |
| Input Power | 60-90 VA |
| Output Brightness | > 6cd/cm2 |
| Power Consumption | 80W |
| Power Supply | 220V/50HZ |
| Rechargeable Battery | Optional |
| Product Packaging | Copper Alloy Suitcase |
| Product Net Weight/Gross Weight | 8 kg / 17kg |
| Warranty Period | 12 Months |
Application
The JZXR SmartView XR-100M is suitable for a wide range of clinical imaging scenarios, including:
-
Podiatry and Foot Care
-
Orthopedic Diagnosis and Surgery
-
Outpatient and Day Surgery Centers
-
Emergency and Mobile Medical Units
-
Rehabilitation and Sports Medicine
Its portable design and high-resolution imaging make it ideal for use in compact spaces, bedside operations, and real-time diagnostics.
