Product Introduction
| XR-1000D | X-ray Inspection System |
The Juzheng XR-1000D Series Handheld Backscatter Imaging Device is a device specifically designed for efficient and precise on-site inspection. Utilizing advanced backscatter imaging technology, it offers high-quality imaging results and is widely used in various industrial and security inspection fields such as Airports, Customs, Borders, Prisons, Government Facilities, Schools, Metros, Bus Stations and etc.
The device is designed to be convenient and lightweight, suitable for long-term handheld operation and adaptable to complex and changing on-site working environments. It features a high-definition display, precise detection capabilities, and supports data storage and export, facilitating later analysis and processing. The JZXR Handheld Backscatter Imager operates under low-dose radiation, providing users with high-precision internal imaging and ensuring accurate inspection results.
Features:
1.Lightweight design, easy to hold and operate, suitable for various scenarios.
2.High-resolution real-time imaging and multi-mode fusion.
3.Compact structure, adaptable for single-sided imaging and insertion into narrow spaces for target detection.
4.Automatic image optimization, providing intuitive visual information display for better identification of potential security threats.
Capable of detecting suspicious devices and contraband hidden under metal and non-metal surfaces.Optional integration with ERI wireless flat panel detector for simultaneous backscatter and transmission imaging, meeting the demands of efficient multi-task inspection. Our company provides 13’’ and 17’’ two panel detectors for optional.
Specification
Technical Specifications
General Specification
| Scan Speed | 150 - 300mm/s |
| Scan Time | Max. 30s |
| Generator Voltage | 140 kV |
| X-ray Leakage | < 1μSv/h (Meet CE and FDA Standard) |
| Detection Capability | Explosives and IEDS, drugs, liquids and other light or organic substances |
Imaging Processing System
| Image Acquisition Mode | Real Time |
| Imaging Processing | Image Mosaic, photography, contrast, brightness, enhancement, false color and etc. |
Penetration
| Steel Equivalent Penetration | 8mm steel |
Power Supply
| Operating Time: | 4 - 6 hours (depending on operaional characteristics) |
System Capacity
|
|
|||||||
Scanner Dimensions
| System Weight | 4.2 kg |
| System Size | 293×228×190 mm |
Data Transfer
| USB and Wi-Fi | Available |
Application
Whole Package Included below:
1. Black Trolley Luggage2. Main Device
3. Li-battery * 2 pieces (6600mAh/piece)
4. Battery Charging Base
5. Power Adapter
6. Battery Charging Base Adapter
7. Packing List
8. Certificate
9. User Manual

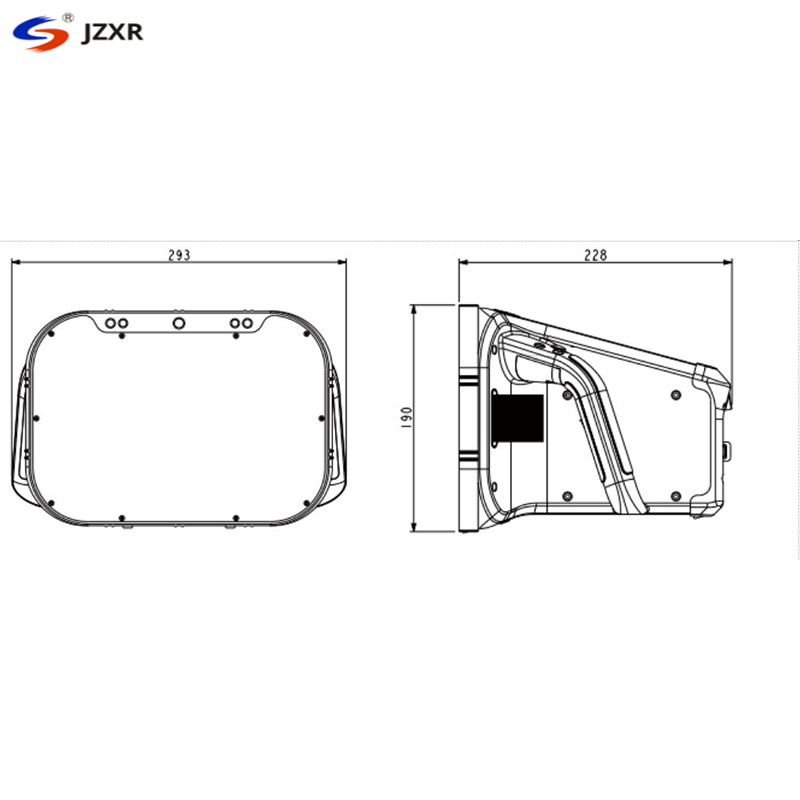

| ☆Dimensions (Unit: mm) | |
 |

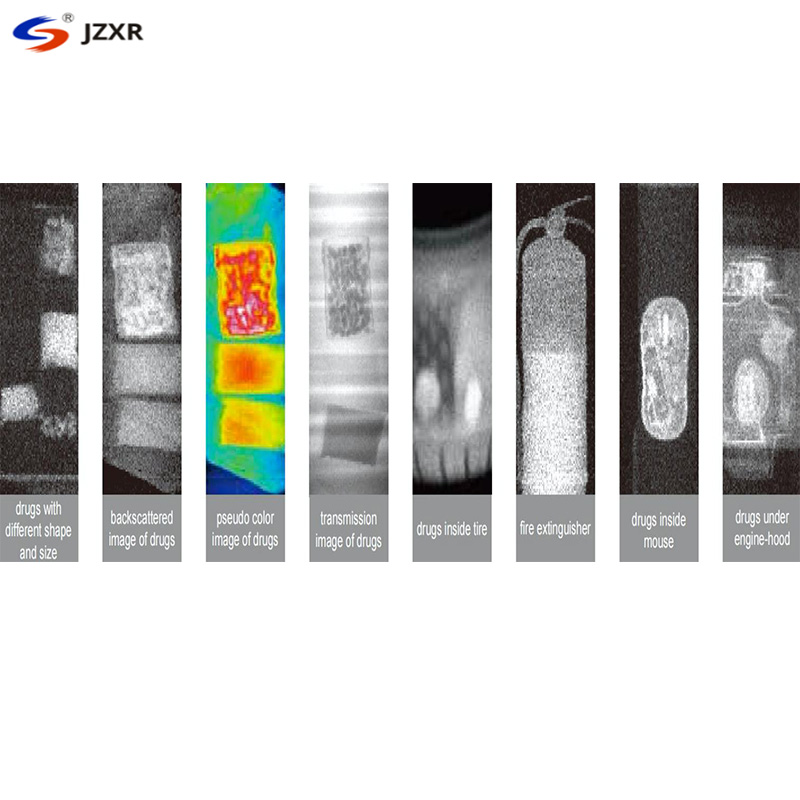

| ☆Scan Images for Reference | |
 |
Main Components
Manufacturing
Our Customers
Certifications
