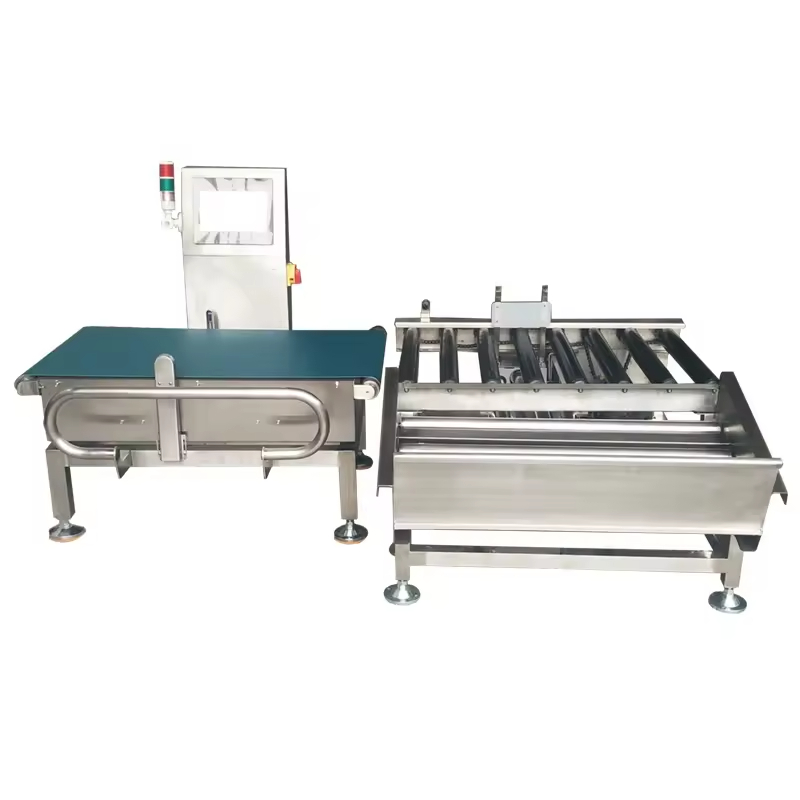

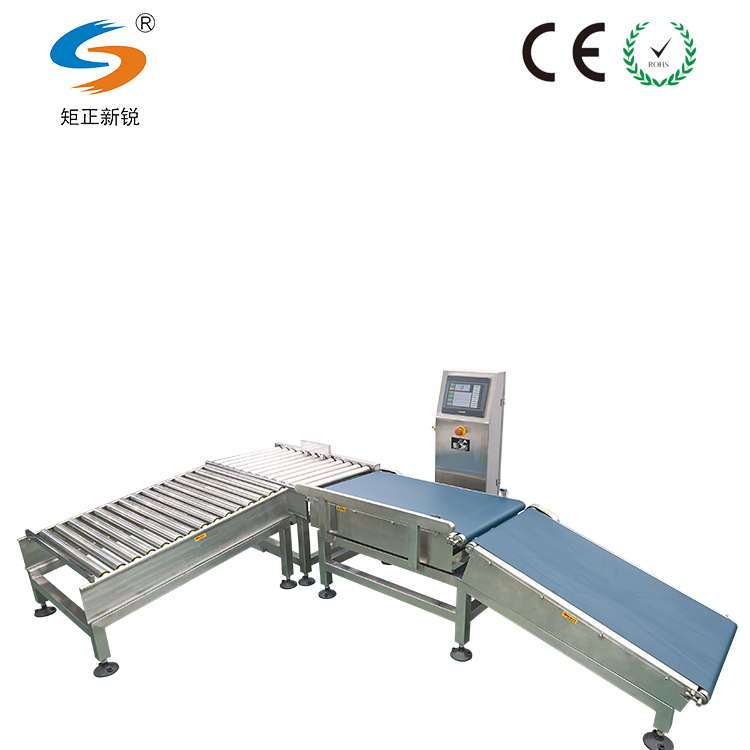

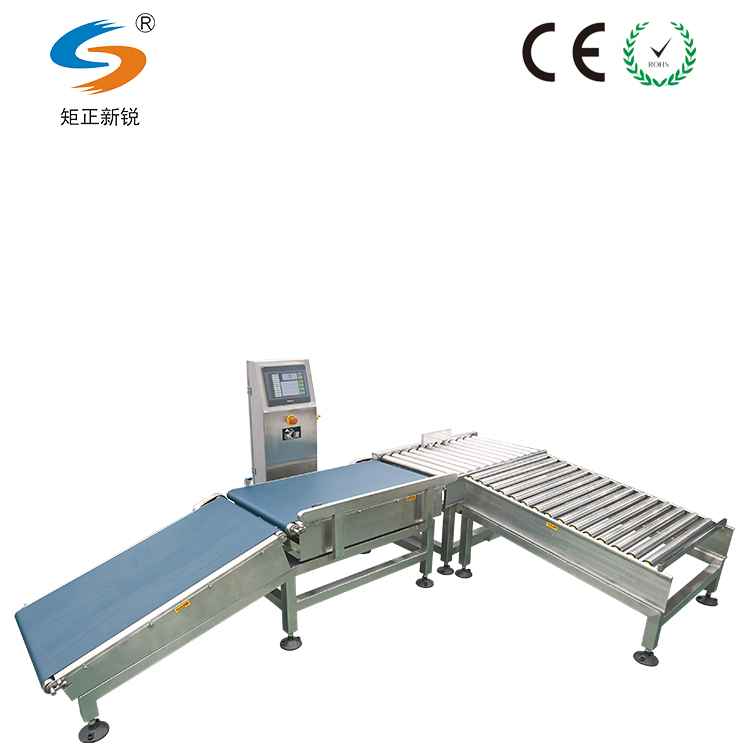

    XR-100kg-700mm Heavy Duty Online Check Weigher Checkweigher

    Introduce：
    The XR-100kg-700mm Heavy Duty Online Checkweigher is designed for large-scale production lines requiring precise, automated weight checking of heavy items. With a max capacity of 100kg and a 700mm wide conveyor, it’s perfect for cartons, bags, barrels, and other large industrial products.

    Online Message

    Product Introduction



    The XR-100kg-700mm Heavy Duty Online Checkweigher is designed for large-scale production lines requiring precise, automated weight checking of heavy items. With a max capacity of 100kg and a 700mm wide conveyor, it’s perfect for cartons, bags, barrels, and other large industrial products.

    Key Features:

    • Max capacity: 100kg, suitable for heavy goods

    • Belt width: 700mm, supports wide/oversized items

    • Max Accuracy: ±2g, depending on speed

    • Material: SUS304 stainless steel, food/industrial grade

    • Reject system: Pusher / Drop Gate / (customizable)

    • Speed: Up to 50pcs/min (adjustable)

    Specification

    Model          XR-100kg-700mm
    Belt width(mm) 10g-100kg
    Weighing range  ± 2g
    Speed(pcs/min) 10-50
    Conveyor speed(m/min) 25-80
    Display resolution(g) 10'' Touchable Screen
    Conveyor height 700 ± 50mm
     Language English / Chinese /  Vietnamese / Spanish
    Conveyor direction  From left to right / From right to left (face to screen)
    Power AC220 ± 10%50HZ（60HZ)
    MS weighing scale module JZXR-80TL
    Load cell ZEMIC/HBM/Mettler Toledo
    Motor  German  JSCC
    Inverter Gerrman JSCC
    Conveyor belt White PU Food-grade belt with FDA certificated
    Working Environment  0℃~40℃
    Material of construction SUS 304
    Rejection system Please refer to Automatic Rejection Systems
    Humidity 90% Relative humidity (without condensate)
    Notes:
    1.All the accuracy parameters above are the basis of the test samples on the conveyor belt. The actual  accuracy would be affected by the product's weight and conveyor speed.
    2.The checkweighing speed above will be affected by the product shape and size.
    3.The company's products will be continuously upgraded. If the above parameters are subject to change, we will not notify you in advance. Please refer to the latest parameters.
    4.Customized orders are acceptable for us.


    Application

    Application Industries:

    • Food & beverage packaging

    • Logistics & express sorting

    • Chemical & fertilizer industry

    • Construction materials

    • Agriculture bulk packing (e.g. rice, flour, seeds)
