Product Introduction

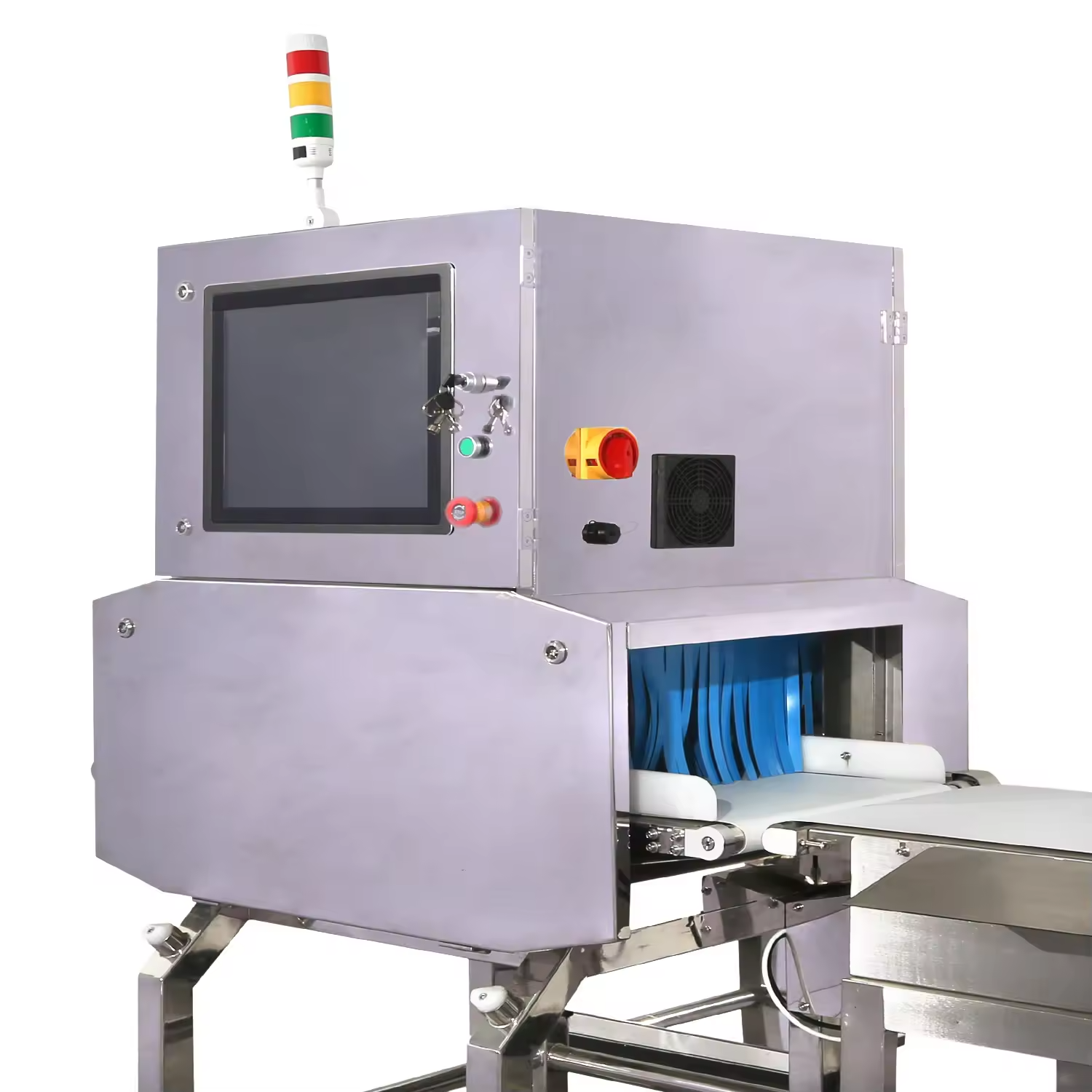

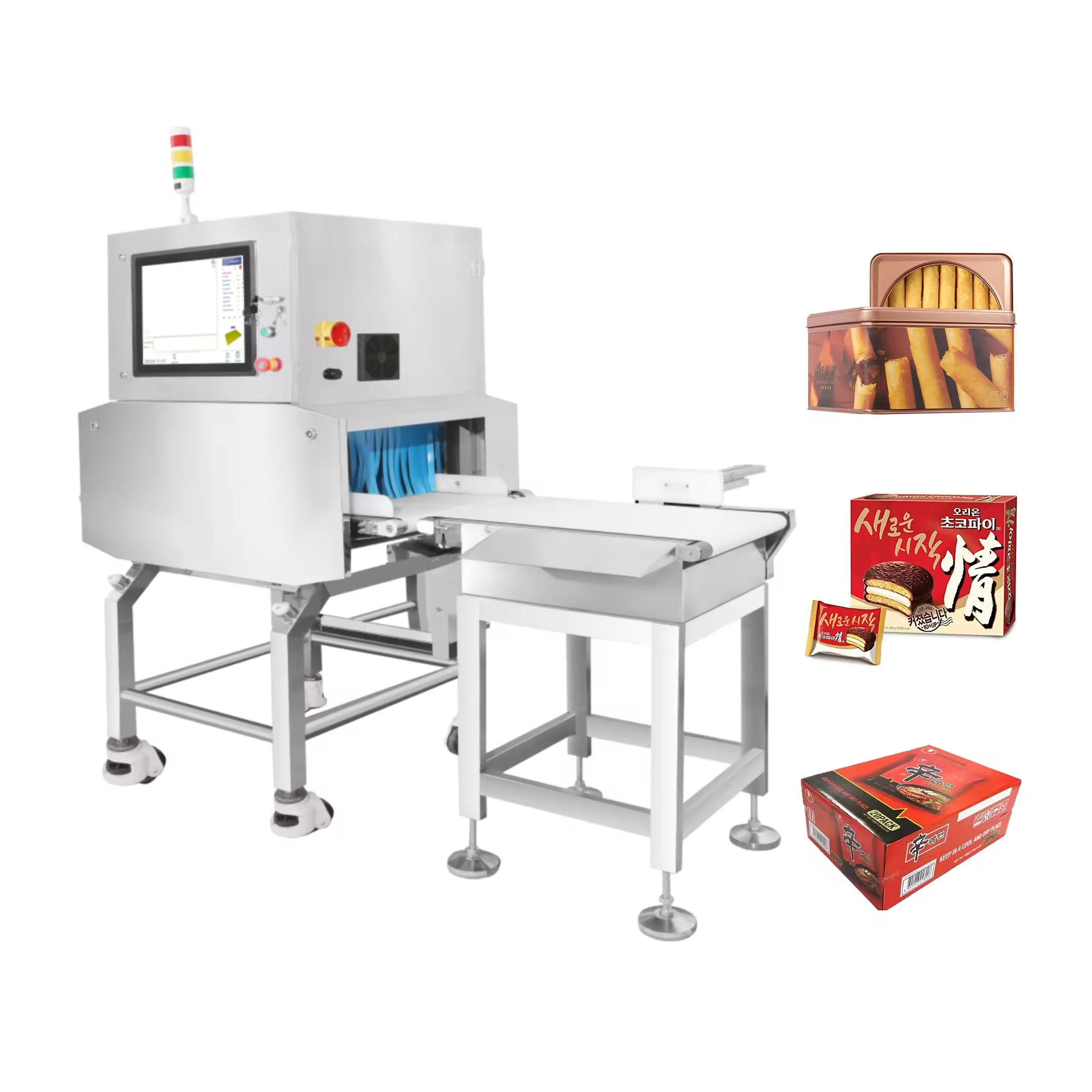

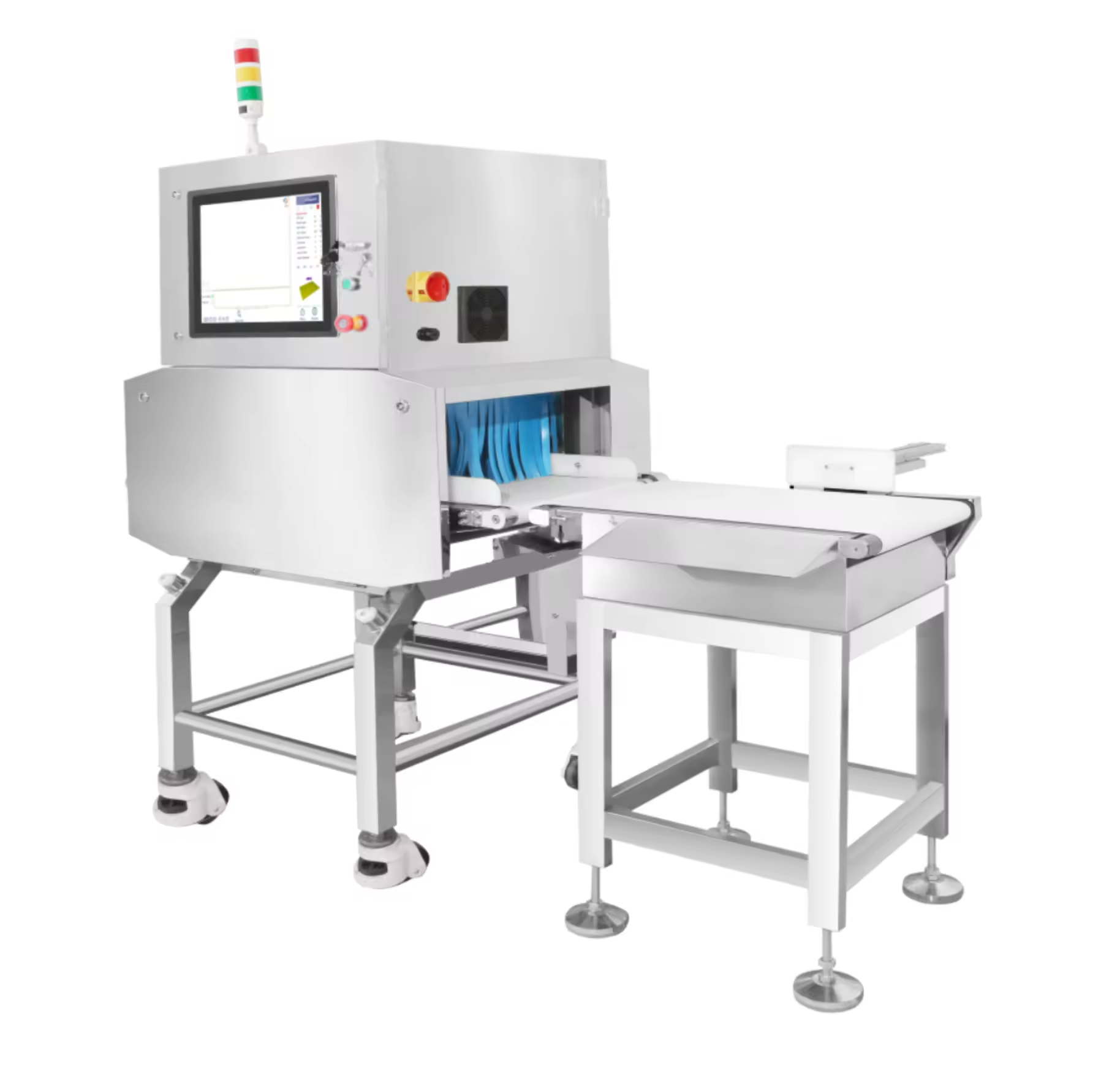

This X-ray food inspection machine is equipped with a pusher reject system, designed for precise contaminant detection and automated rejection of defective products. Using high-resolution X-ray imaging, it efficiently identifies foreign bodies such as metal, glass, bone, or dense plastic inside packaged food.

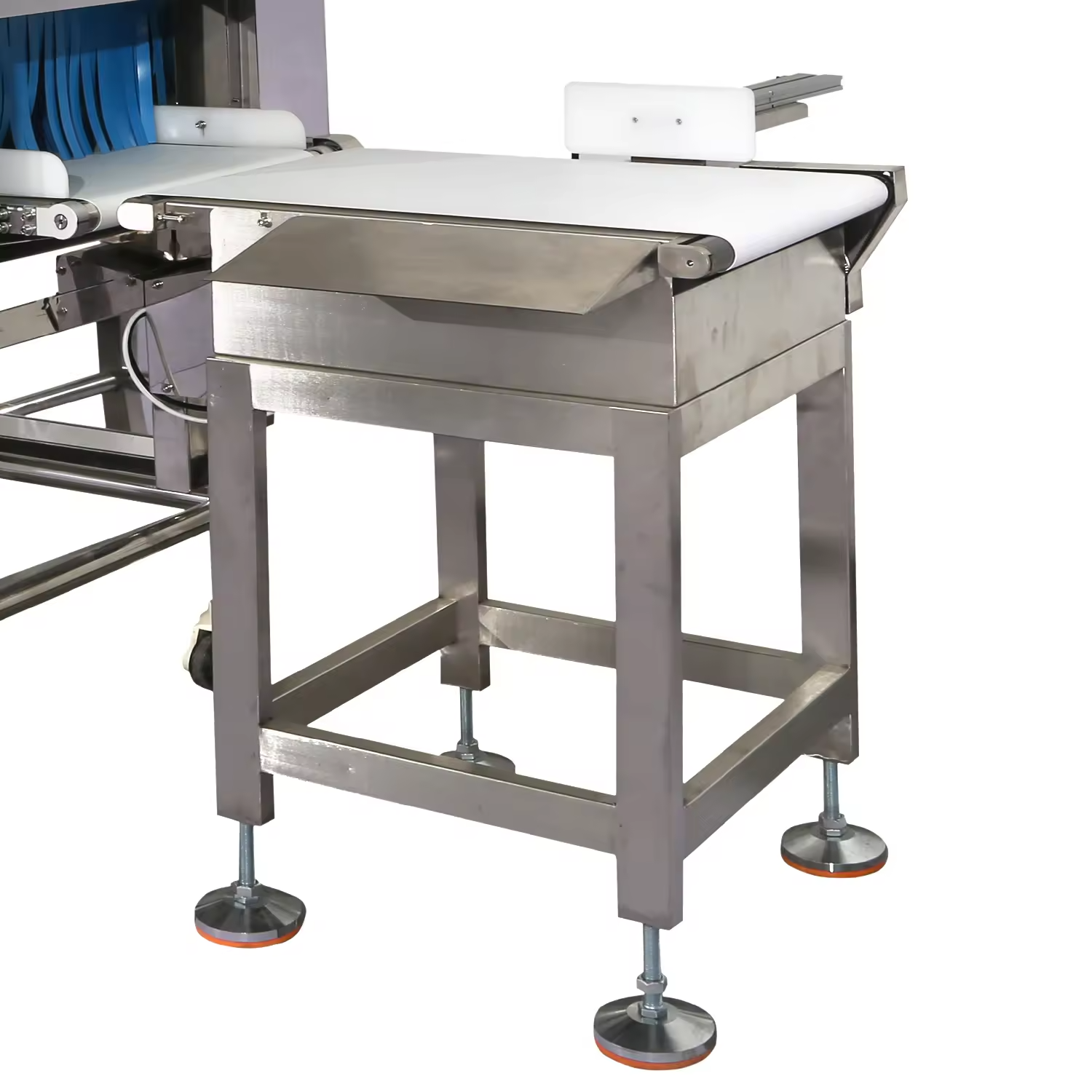

Upon detection, the pneumatic pusher arm swiftly removes the contaminated item from the main conveyor line, ensuring food safety, product quality, and regulatory compliance.
Ideal for ready-to-eat meals, snacks, meat, seafood, dairy products, and other small packaged goods. It is widely used in food processing plants, export-oriented manufacturers, and HACCP-compliant facilities.
Key Features:
-
High-precision foreign object detection (metal, glass, bone, plastic)
-
Fast-response pusher reject mechanism for high-speed lines
-
CE/FDA/HACCP compliant design
-
Reduces false reject rate, maximizes throughput
Specification
| X-ray Source: | Standard: 150W, 80kV. Optional: 350W,100kV | |||
| X-ray Beam Direction: | From the top | |||
| Detector: | 0.4mm | |||
| Detection Tunnel Size: | 400mm (W) × 200mm (H). Customized order is acceptable. | |||
| Max.Detection Accuracy without product: |
SUS: ≥Φ0.4mm, Ceramic: ≥Φ 1.0mm, Glass: ≥1.5mm | |||
| Conveyor Speed: | 20-60 m/min | |||
| Bearing Capacity: | Standard: ≤5 Kg. Customized order is acceptable. | |||
| O/S: | Win 10 | |||
| Software: | JZXR X-ray Inspection Software | |||
| Connectivity: | LAN port & USB port | |||
| Screen: | 21.5 inch full color touchable screen | |||
| Parameter Adjustment: | Auto Setting & Manual Setting | |||
| Operation Language: | Chinese & English | |||
| Reaction to defectives: | buzzer and red light alarm once foreign body is detected | |||
| Material of construction: | SUS 304 | |||
| Surface Treatment | Mirror Polished / Brushed | |||
| Cooling Mode: | Industrial cooling fans & Industrial A/C | |||
| Working Environment: | temperature: -5℃-40℃; humidity: 30-90%RH (no condensation) | |||
| Power Supply: | AC220V ±10% 50/60Hz | |||
| X-ray Leakage: | < 1μSv/h (Meet FDA and CE standards) | |||
| Protective Mode: | 6 layers of non-lead food grade soft curtain | |||
| Conveyor Material | Food grade PU belt with FDA certificate | |||
| Emergency Stop Button | Yes, included | |||
| Multi-levels management | Yes, Operator, Worker and Administrator three -levels management to meet different | |||
